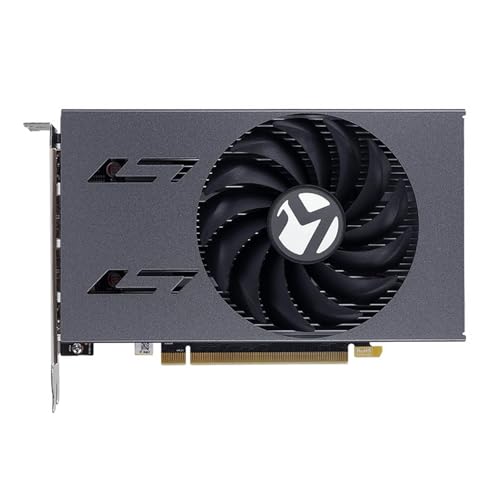

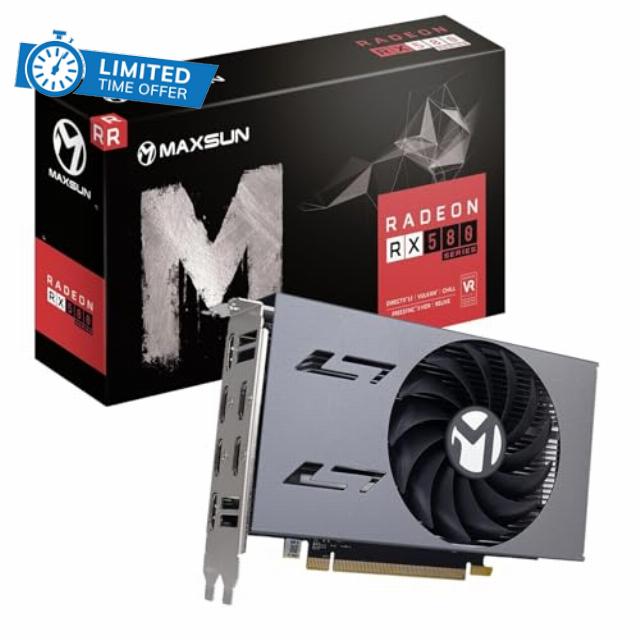

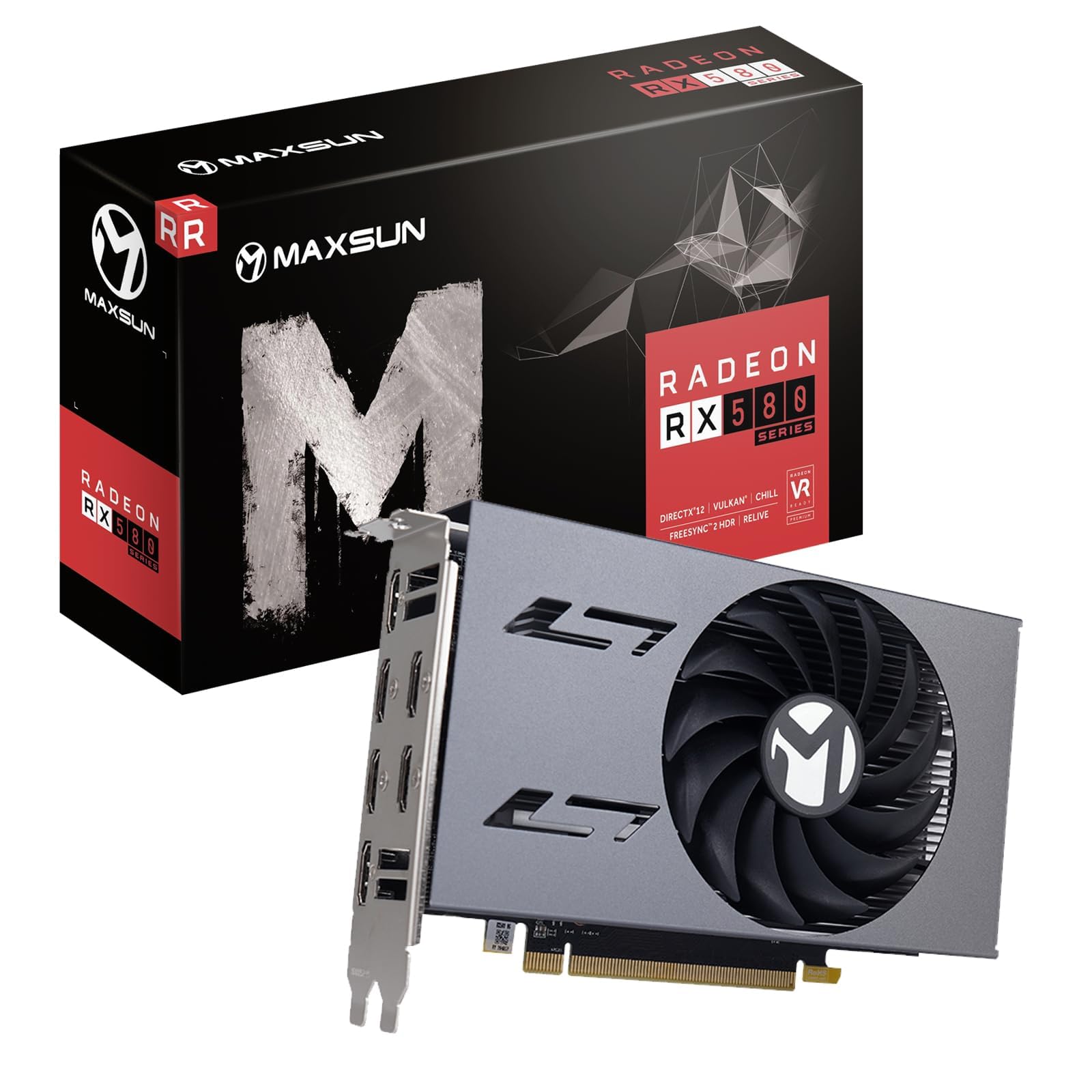

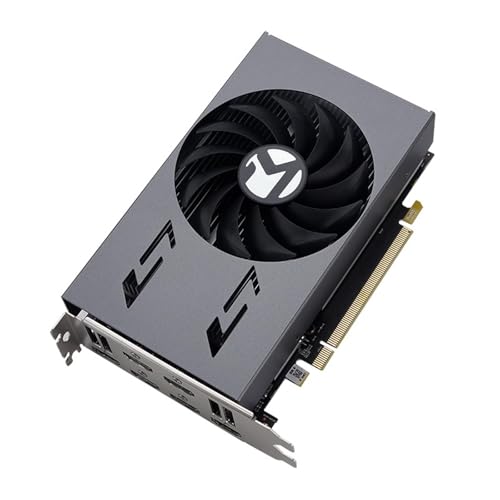

maxsun AMD Radeon RX 580 8GB 2048SP GDDR5 Computer Video Graphics Card GPU

maxsun AMD Radeon RX 580 8GB 2048SP GDDR5 Computer Video Graphics Card GPU for PC Gaming
maxsun AMD Radeon RX 580 8GB 2048SP GDDR5 Computer Video Graphics Card GPU for PC Gaming

maxsun AMD Radeon RX 580 8GB 2048SP GDDR5 Computer Video Graphics Card GPU for PC Gaming, Monitoring, Stock Trading etc 256-Bit 6 HDMI Multi Monitors Screen Extend DirectX 12

  • The Radeon RX 580 2048SP is a graphics card by AMD. Built on the 14 nm process, and based on the Polaris 20 graphics processor, in its Polaris 20 XL variant, the GPU supports DirectX 12. This ensures that all modern games will run on AMD Radeon RX 580 2048SP.

Excellent Cooling

A large aluminum heatsink radiator and 9CM PWM dual fans to provide an excellent cooling effect for the GPU works at a lower temperature, higher efficiency & stability.

PowerOC PCB & Quality Materials

MAXSUN AMD Radeon RX 580 2048SP graphics card has a silver plated PowerOC PCB & all solid capacitors, independent MOS heat sink, and high-quality GPU memory chipset ready for harsh working even in harsh terms.

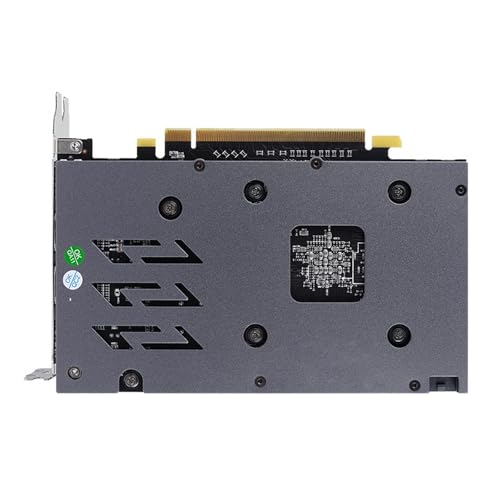

Metal Backplate

The pre-installation metal backplate reduces the risk of graphics card deformation and improves cooling ability.

AMD FreeSync & Multi Screens

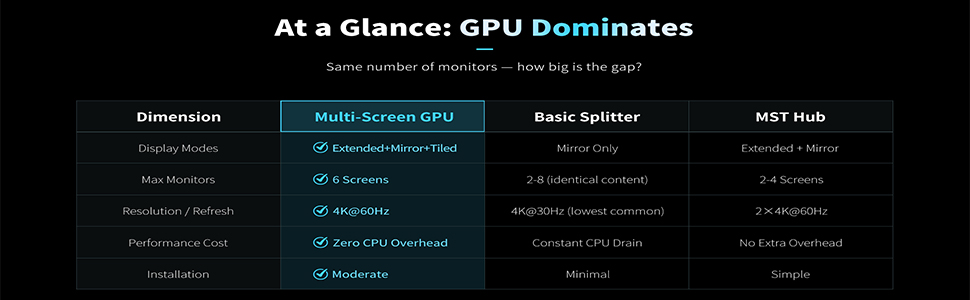

The full digital output can maximum extend 6 monitors in 4K resolution, with AMD FreeSync technology putting an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate. Behold the next breakthrough in PC and console gaming experiences.

Powerful AMD's Polaris 20 XL series architecture, smoothing HD gaming and beyond.

VR Ready, Incredible VR and Beyond HD Gaming Experiences

Specification

Graphics Card ModelAMD Redon RX 580
GPU Core CodePolaris 20 XL
GPU Core Processes14nm
Stream Processors (CUAD)2048
GPU Clock1168~1284MHz
Video Memory Clock7000MHz
Video Memory Size8GB GDDR5
Video Memory Interface Width256bit
Video Memory Bandwidth224GB/s
Bus Interface TypePCI Express X16 3.0

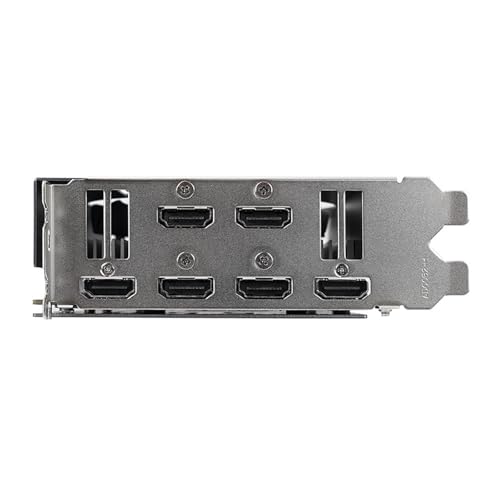

Standard Display Connectors6x HDMI
Maximum Digital Resolution4K (3840×2160@60Hz)
Supplementary Power Connectors6 pins
TDP150W
Recommended System Power (W)350W
3D APIDirectX 12, Shader Model 5.0, OpenGL 4.5/4.6, Vulkan

SKU: B0GQ2BH117
Weight: 514 Grams
Dimensions: 17.4L x 11.1W centimetres
Brand: maxsun
Model: MS-RX580 2048SP 6H 8G
Manufacture: MAXSUN
Origin: China

Product Description

RX 580amd radeon rx 580 8gbtarjeta graficamulti monitorcomputer graphics cards

Specification

Graphics Card Model AMD Redon RX 580
GPU Core Code Polaris 20 XL
GPU Core Processes 14nm
Stream Processors (CUAD) 2048
GPU Clock 1168~1284MHz
Video Memory Clock 7000MHz
Video Memory Size 8GB GDDR5
Video Memory Interface Width 256bit
Video Memory Bandwidth 224GB/s
Bus Interface Type PCI Express X16 3.0
Standard Display Connectors 6x HDMI
Maximum Digital Resolution 4K (3840×2160@60Hz)
Supplementary Power Connectors 6 pins
TDP 150W
Recommended System Power (W) 350W
3D API DirectX 12, Shader Model 5.0, OpenGL 4.5/4.6, Vulkan

3 Responses

  1. Sheldon Smith says:

     Canada

    RX580 8 GB + FX8000 series CPU
    I just bought this card for my old AMD FX build to extend its life. I own some of the more recent versions of the builds like one based on 3900 series (3900X) and another on 5900 series (5950X) and I use both AMD and NVidia cards. What I am frustrated about is that something like AMD FX still has plenty of power and potential in it; it’s 8 core CPU with still OK cache. I never had issues playing games or developing software or even virtualizing with it. Lately I am disappointed with Windows, let’s face it – after Windows 7 all the other versions ended up being complete crap! Windows 11 now requires TPM module, my Asus TUF 990FX R2.0 has the slot of it but I don’t want to order that card. I just figured I’d put Linux Mint Debian Edition on it instead of Windows. System has 32 gigs of RAM and I also setup 4 TB RAID 5 and put SSD as a main drive. This computer flies! now! It boots up super quickly, entire Linux Mint install is clean and it only took me 1 day to load all of my additional software on it like JetBrains IDEs – full pack, Steam, Games, etc… I had HD7950 in it at first with 3 gigs of VRAM but it was obviously not enough to use PROTON for my type of games. So I ordered this card. RX580 I think is like the last card you can probably load into system such as mine with 8 gigs of VRAM but it’s worth it for the price that seller offers it for! I just got my card today and I already installed it and the first thing I did is I ran Steam and PROTON layer to test how it all worked. With 7950 I did not have enough VRAM to run games but with 8 Gigs of VRAM now I do! This RX580 is relatively compact in comparison to the one I loaded into my wife’s PC. Aorus RX580 is much bigger than this card, also the voltage connector on this card is the 6 pin one and not 8 so just another awesome addition I think. First thing I checked is Battlezone 98 Redux and Battlezone II and guys these Windows games ran just friggin fine on full settings with PROTON layer on Mint! in fact, I think they looks even prettier on Linux than on WIndows! I have them on both types of machines but they look great on Linux! Huge thanks to Valve and Steam and Mint team for developing such an outstanding software! Love you guys, you all made my day! Before I move on to things like FarCry 5 and 6 I am loading FarCry 3 right now which is about 11 gigs of download from Steam. I can’t wait to see what this card would do and how it’ll handle it! So far, I believe, I’ve made the right choice here by purchasing this GPU from this vendor. If you want freedom from Windows OS and don’t want to spend an arm and the leg on the GPU (I did that I got my 3090 during COVID times because I really needed that type of GPU for work but the price was C.R.A.Z.Y! No GPU should EVER cost that much money because guess what?! 6 Months later, not even that, it’ll be obsolete or not current. I’m also avoiding 4000 series from NVidia because they are not well designed.) anyway, where was I; and you want to play relatively new games and you need to make sure that you have at least 8 GB VRAM this is the GPU that you would want! This seller delivered the card on time and so far with no issues. My only note was that I did not notice any protective tape on the GPU box itself so I was not sure if it was a brand new card. Only protective tape I found was inside the box on the bag that was housing the card itself. It seemed that all looked new but I can’t ever tell. Either way I have a GPU that works with 8 GB of VRAM and it was delivered to me quickly. I’d buy this again from the same seller. If I’ll have any issues in the future I’ll post additional notes but so far everything is looking well and good! If you are in the same situation where you just don’t want to throw your old, still capable system out and want to repurpose it then this GPU might be for you and, honestly, you should see how quick the system is running Mint and games play well too with high settings! I do development and .NET 8 and Python and lots of other stuff and all works well! I’ll be testing more games on this system later but the product was made for this type of situation! Very happy with my purchase and service provided by this seller!

  2. Anonymous says:

     United States

    Video card issue corrected, see update.
    Today is 5/30/25, when I had received the video card, at first I wasn’t able to use it because it needed add-on power which my computer didn’t have. So I decided to buy a stronger power unit, and I managed to get the video card to work with zero issues. Now unfortunately, I got a random flashing white screen, and a blue screen on my monitor not because the computer crashed, but because the video card randomly stops working. I also get a flashing red and green screen from time to time, and if I restart the computer, it works for a little bit and then it goes crazy again. I wish this would have happened BEFORE the return period. Hopefully amazon or the manufacturer will help me out with this because this is a brand new card, and it’s already failing? I am not a happy gamer right now. I’ll add an update later if possible.

    10/25/2025

    So an update about the video card, turns out the video card was perfectly fine, my Dell hard drive finally gave and could no longer boot up. So I ended up purchasing a HP Victus 15L desktop, and I installed the video card on it, and I have zero issues, the video quality is flawless, and I’m able to play most games on maximum setting, but for some reason, Red Dead Redemption 2 refuses to recognize the video card. Besides that hiccup, not bad at all.

  3. MonicaBanfield says:

     Mexico

    Buena adquisici
    Llego en tiempo y forma acordados en mi pas Mxico.

    Debes de saber que es una rx 570 pero con 8 gb que hicieron para china, no es la rx 580 autntica.

    Llevo 2 meses con la tarjeta y su rendimiento es el esperado, en grficos medios a 1080 en juegos actuales y una media de 60 fps.

    No tuve problemas con los drivers el nico detalle fue que al instalarla no tena sonido pero eso se soluciona fcil con un tutoral en YT, cada tarjeta de AMD que he tenido ha llevado consigo ese problema pero tiene fcil solucin.

    Si se preguntan el coil whine, o zumbido es completamente normal no se asusten.

    Al principio la tarjeta no activara los ventiladores pero es por que en adrenaline tiene la opcin de Zero rpm, desactiven esa opcin y funcionarn a la normalidad.

    Recomiendo comprar esta tarjeta si esta de 3mil pesos mexicanos para abajo, si es un precio ms caro que eso mejor ve por una rx 7600 autntica.

    No me arrepiento de la compra.
