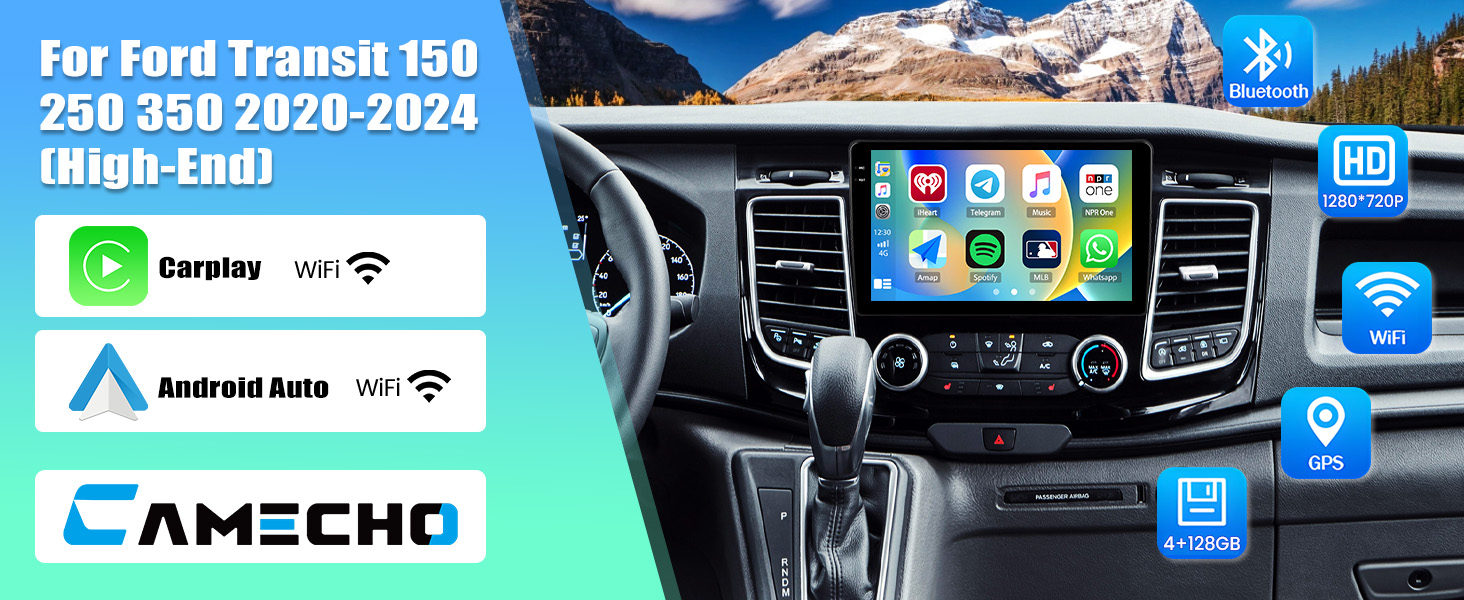

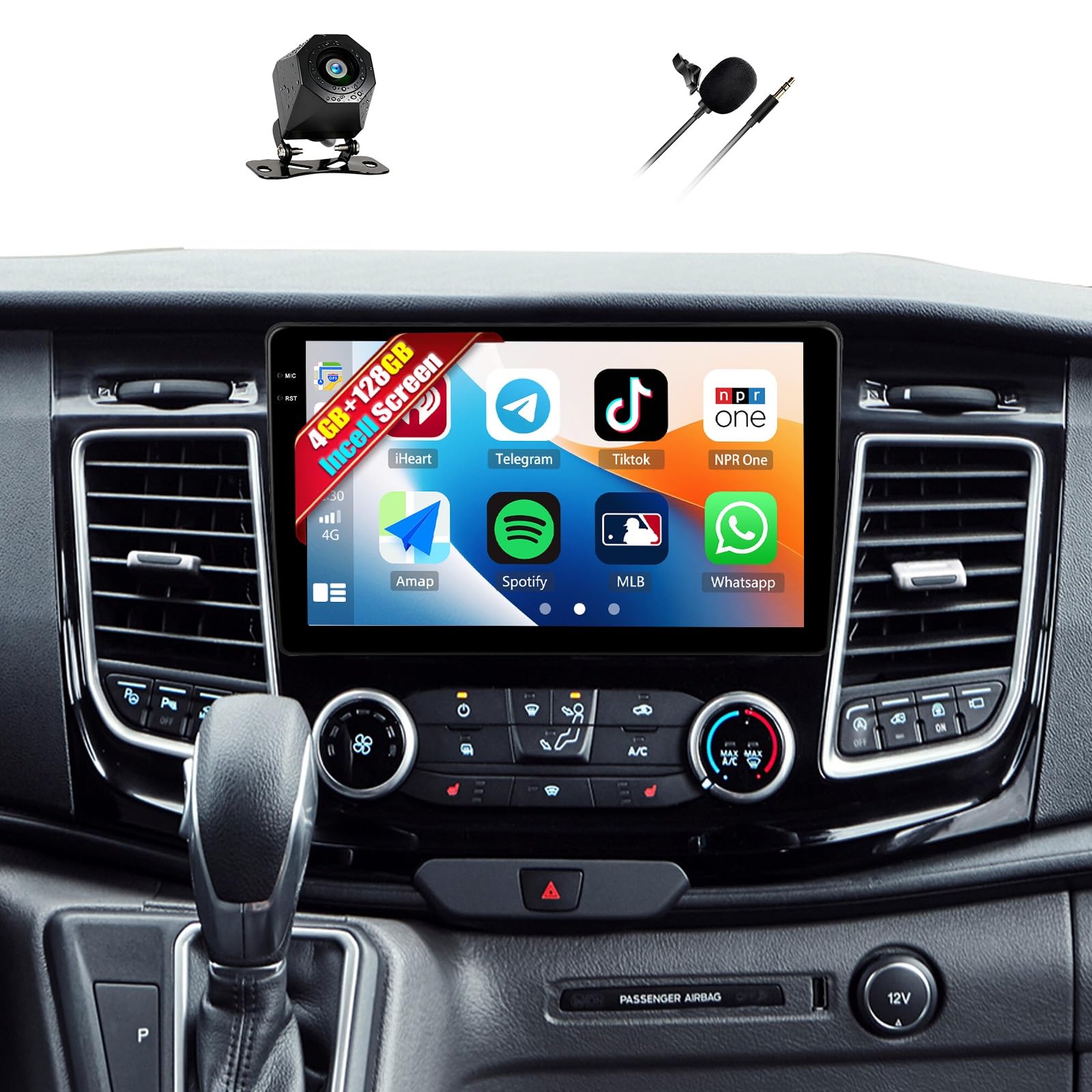

4G+128G Car Radio for Ford Transit Custom 2020-2024 (w/OEM Display) Wireless CarPlay Android Auto Android 15 Car Stereo with 10 Inch 1280 * 720 in-Cell Touchscreen Bluetooth FM GPS Backup Camera

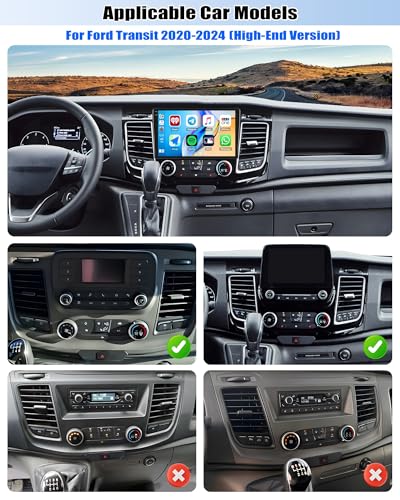

• [APPLICABLE CAR MODELS] – Designed with newest Android 15 system and 4G RAM+128G ROM for smooth app performance, 10 inch incell 1280*720P touch screen for optimal visibility, this android head unit is perfectly suitable for 2020 2021 2022 2023 2024 Ford Transit Custom Radio (High-End Version), Canbus integration (Not Fit: Without OEM Display (1-Din Type, Low-End Version) Note: Only connect the Main Connector

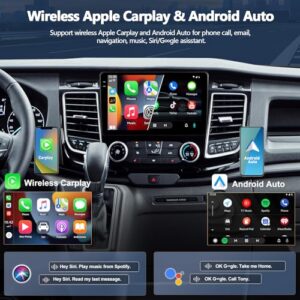

• [WIRELESS CARPLAY & ANDROID AUTO] – The car stereo supports wireless connectivity with Apple CarPlay, Android Auto, and MirrorLink, available for map navigation, music streaming, podcasts, and audiobooks, as well as Siri/Google voice assistants for making calls and sending messages, keep you stay focused while enjoying a seamless connected entertainment experience

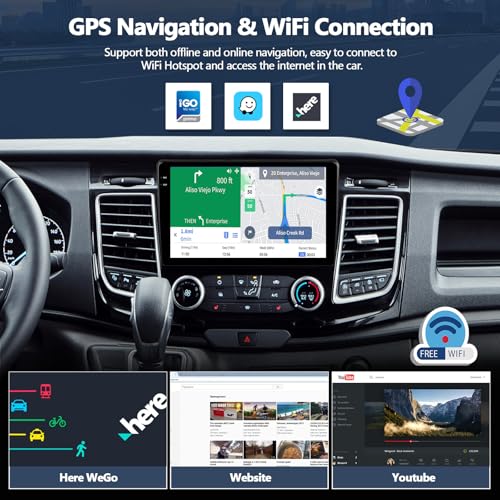

• [GPS & WIFI, ONLINE & OFFLINE MAPS] – Built-in GPS receiver and WiFi connectivity, enabling both online and offline navigation to plan your route. Allow install or delete android apps from Application Store, such as Youtube, Gmail, TikTok, Spotify, etc

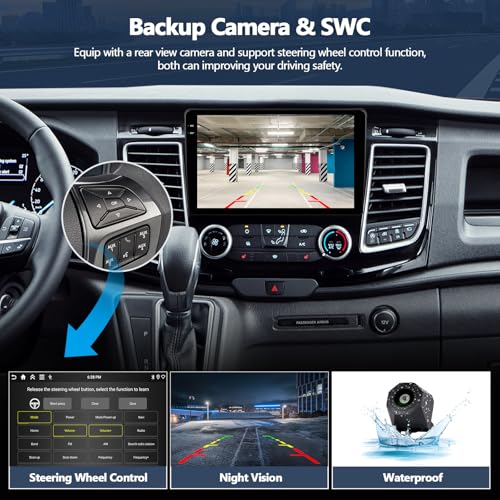

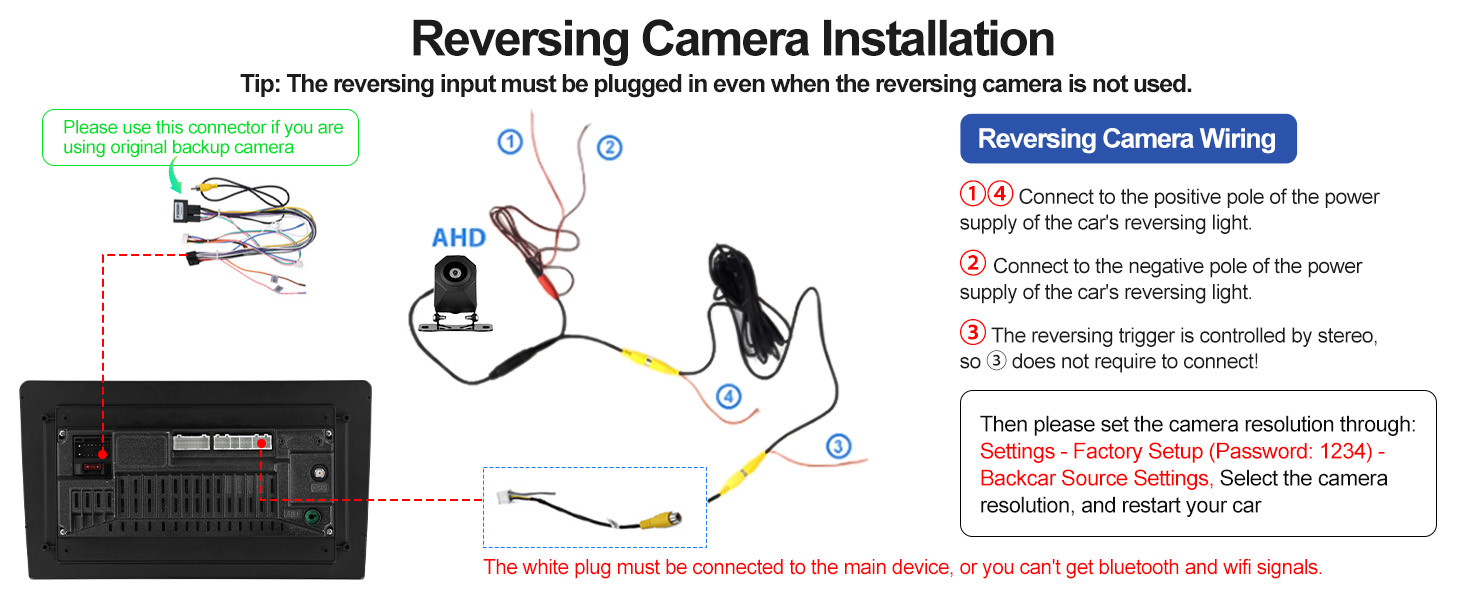

• [CAR STEREO WITH AHD BACKUP CAMERA] – The car radio with an extra AHD rear view camera offers you reversing assistance with clearer image, excellent night vision and a wide field of view

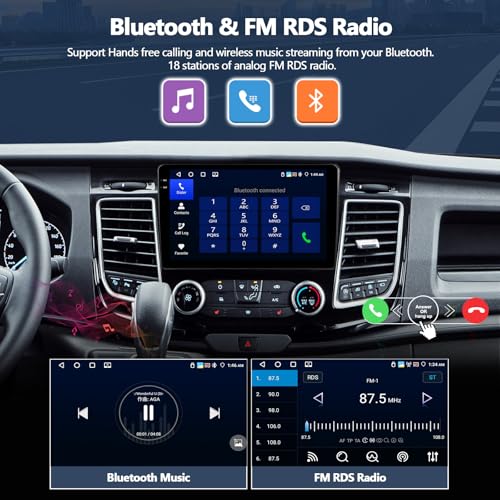

• [BLUETOOTH FEATURES & FM RDS RADIO] – Stay connected while driving with incoming and outgoing calls, hands-free with no distractions. Play and control your music and apps wirelessly. High quality digital stereo (RDS) FM tuner can enjoy your favorite radio stations
• [ENTERTAINMENT CAR AUDIO SYSTEM] – Work with the original steering wheel buttons, built-in preset EQ. Share phone contents in the Mirror-Link state, with dual USB port for 1080P video playback and phone charging. Support multiple customized UI interface and homepage APP selection, split screen, Subwoofer and Amplifier Output

Built-in wireless Apple Carplay & Android Auto, 4GB RAM+128GB ROM Android 15 car stereo with 10" incell 1280*720 touchscreen, supports GPS & WiFi, Bluetooth, FM/RDS, mirror link, backup camera, fits

Ford Transit Custom 2020-2024 (High-End)

Not Fit: Without OEM Screen (1-Din Type, Low-End Version)

1. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   Wireless Apple Carplay

   Wireless Apple Carplay



   • Wireless Connection
   • Phone, Music, Navigation & More
   • Siri Assistant

2. Wireless Android Auto



   • Only Wireless
   • Hands-Free & Safe Driving
   • Google Assistant
   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   Wireless Android Auto

3. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

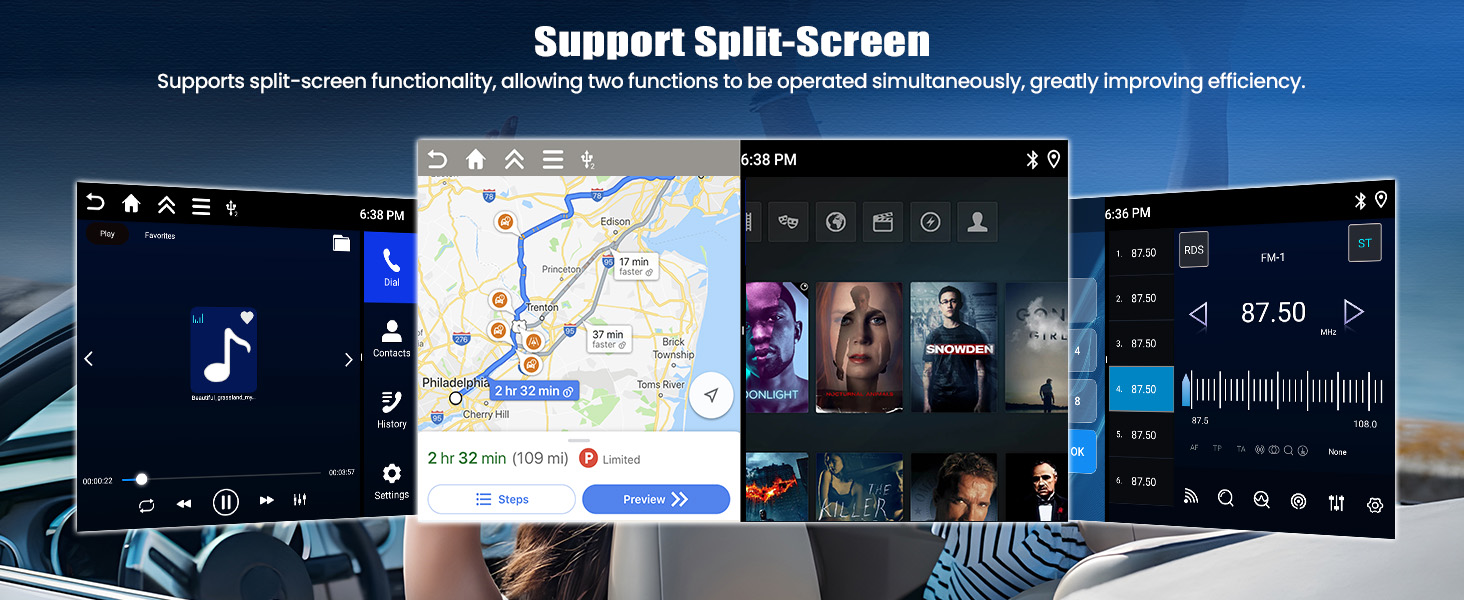

   Split Screen Function

   Split Screen Function



   • Multi-task function
   • Easy to read
   • Radio/music/Video while using navigation

4. Protocol Box Settings



   • If original steering wheel control does not work
   • If original car information does not show
   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   景安驰 Protocol Box Settings

5. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   景安驰 Rear Camera Resolution Settings

   Rear Camera Resolution Settings



   • If camera screen is black or blurring

6. Touch Screen Calibration



   • If touch screen is unresponsive or freezing
   • If the touch screen is inaccurate
   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   景安驰 Touch Screen Calibration

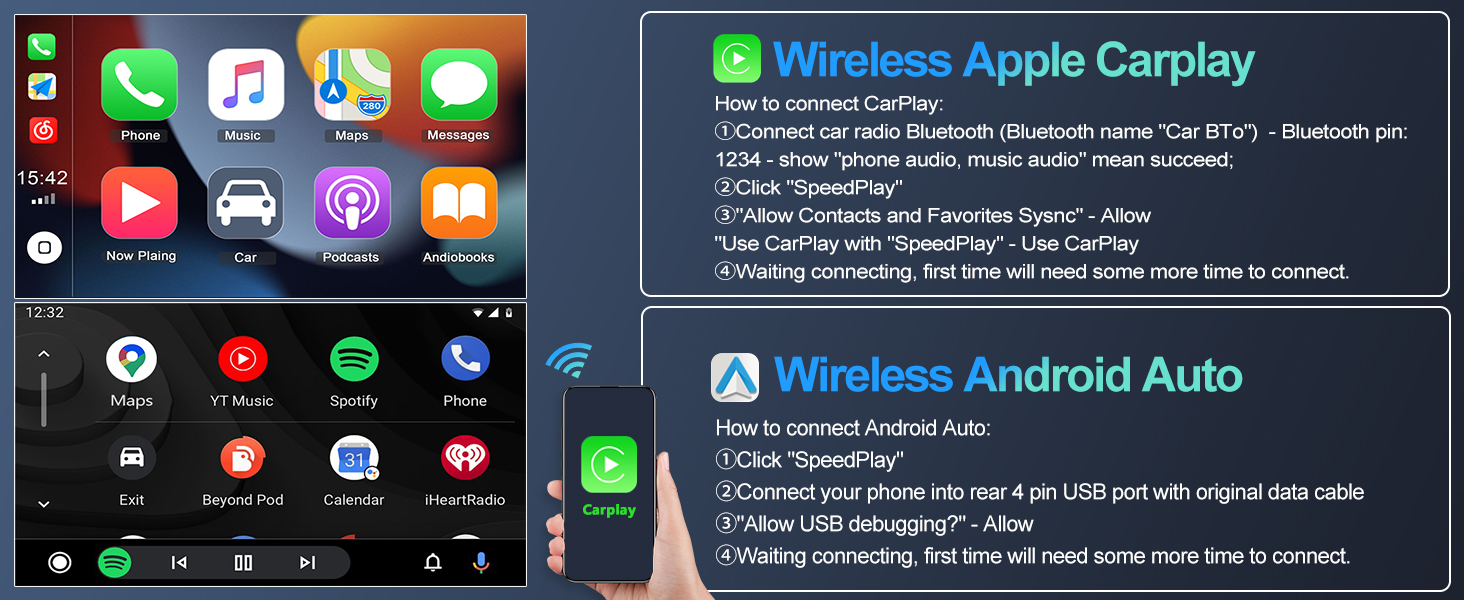

Car Stereo with Wireless Apple Carplay

CarPlay for IOS: Apple Carplay is a car-computer interaction system specially customized for iPhone, for operating Apps from your phone such as navigation, telephone, music, radio, etc. on the 10 inch touch screen car stereo.

Make all hands-free and all on-the-go by simple and convenient controls.

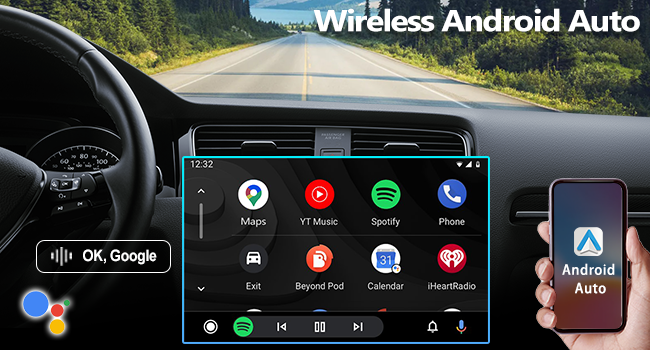

Car Radio with Wireless Android Auto

Android Auto for Android: Android Auto is specially created by Google for Android phones, similar to CarPlay, you will be able to operate various Apps from your phone and your phone screen can still work independently.

Make your driving much safer by simple and convenient controls.

Once Bluetooth connection is established between the car stereo and your phone, you can make hands-free calls and stream your favorite songs on Spotify, Pandora, etc.

Note:

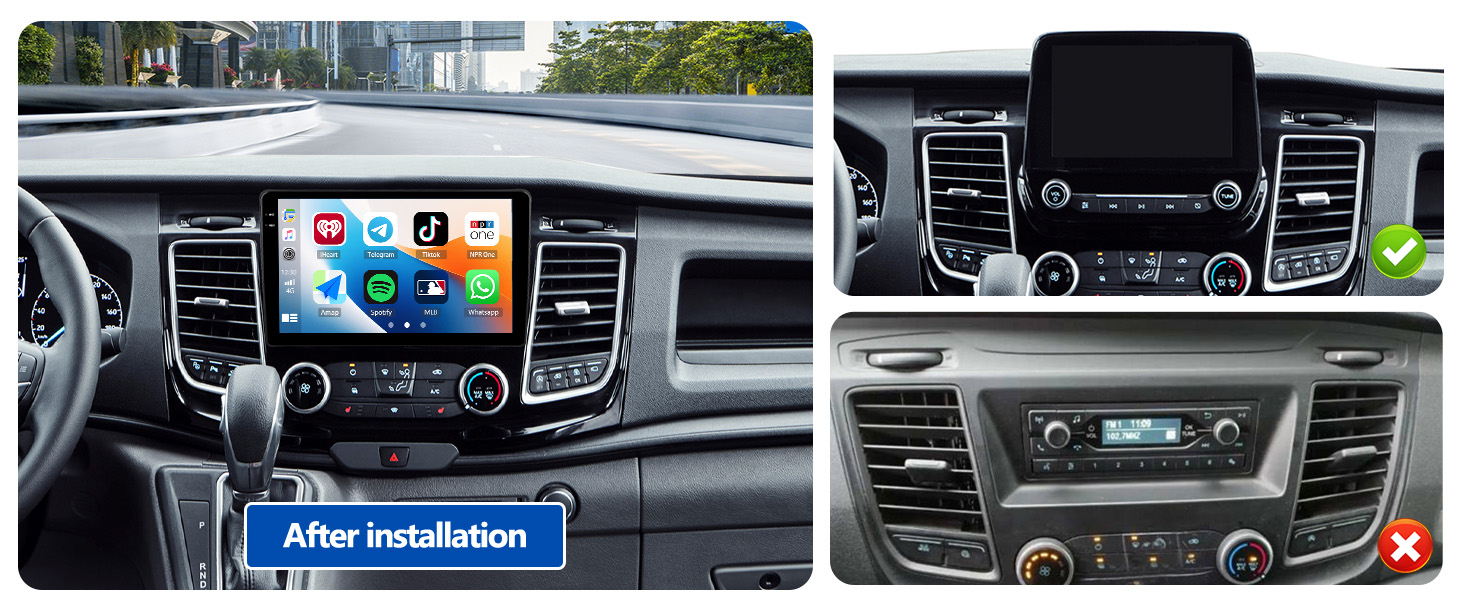

1. Please check your car dashboard and CD Back before order.

2. Only connect the Main Connector.

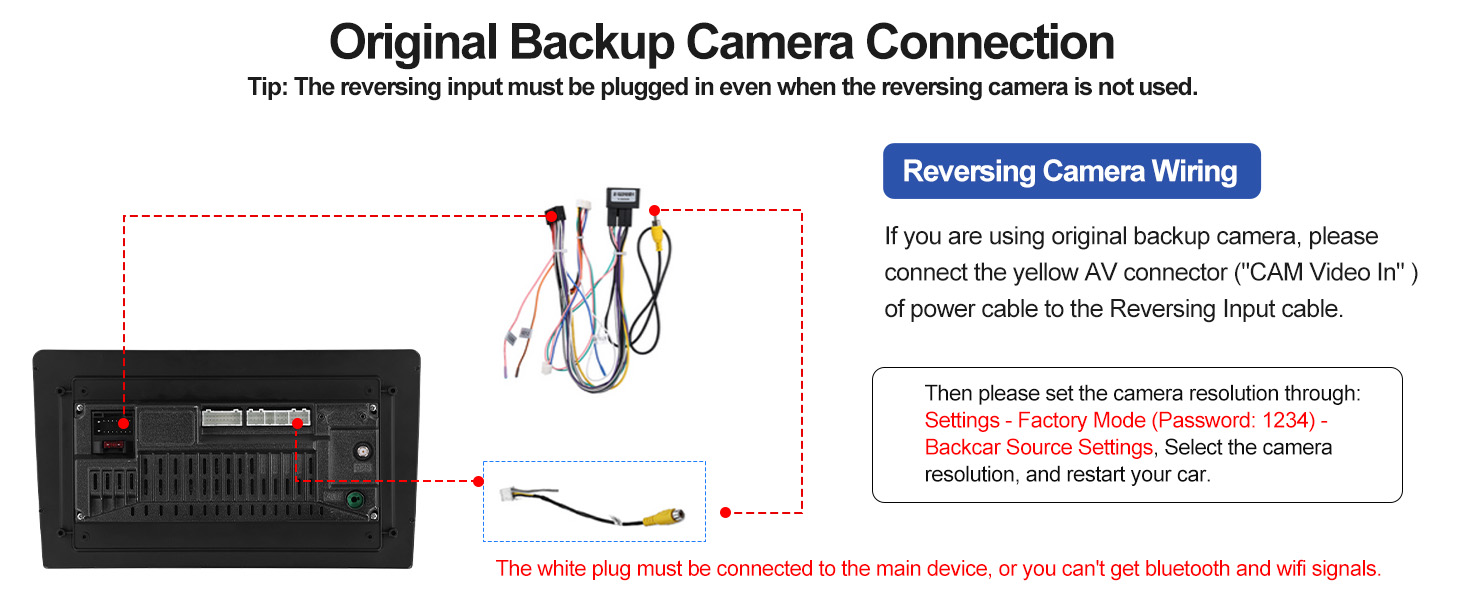

If uses original backup camera,please follow the connection of picture 3

Android Car Stereo for Ford Transit Custom Radio (With OEM Display)

• Why no Audio? / Why FM Radio has audio but Bluetooth and Carplay does not get audio?

  1. Connect "AMP Cont" of RCA to ACC

  2. For power amplifier – connect the power cable of Amplifier to the 12V ACC wire of our product

  3. Open the "amplifier" icon on the drag down page of the top bar

  4. NOT compatible with Premium Audio System

• Why the radio does not turn off and keeps draining my battery?

  1. If your car wiring has been modified before, please find you car real ACC wire and connect to the red wire of car radio power cable

  2. Use a multimeter to check for leaks when car is off. If Canbus is leaking, please remove it and reach us

• Why Bluetooth or WiFi signal is weak? / Why is there no network even though WiFi is connected?

  1. There is a sepearetely backup camera input cable, please insert it to the rear of car radio. It will enhance Bluetooth and WiFi signal

  2. The android car stereo only supports 3G Internet, please confirm the Internet is 2.4Ghz

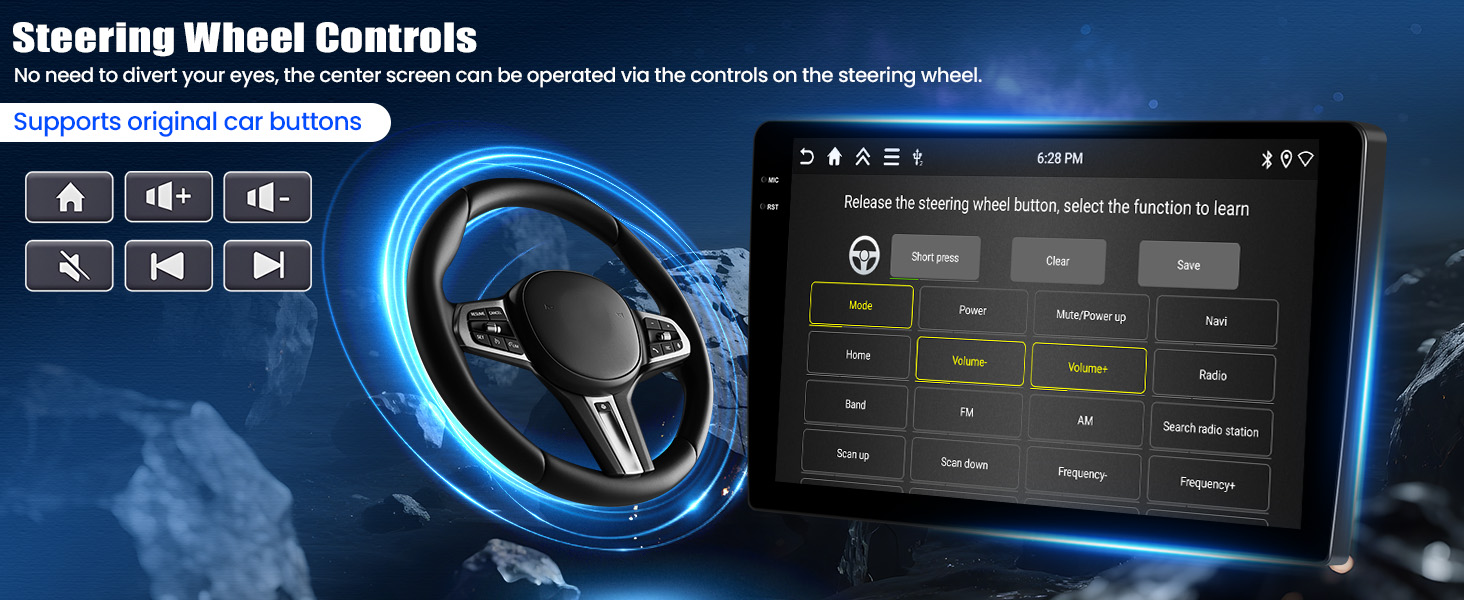

• Why steering wheel control does not work?

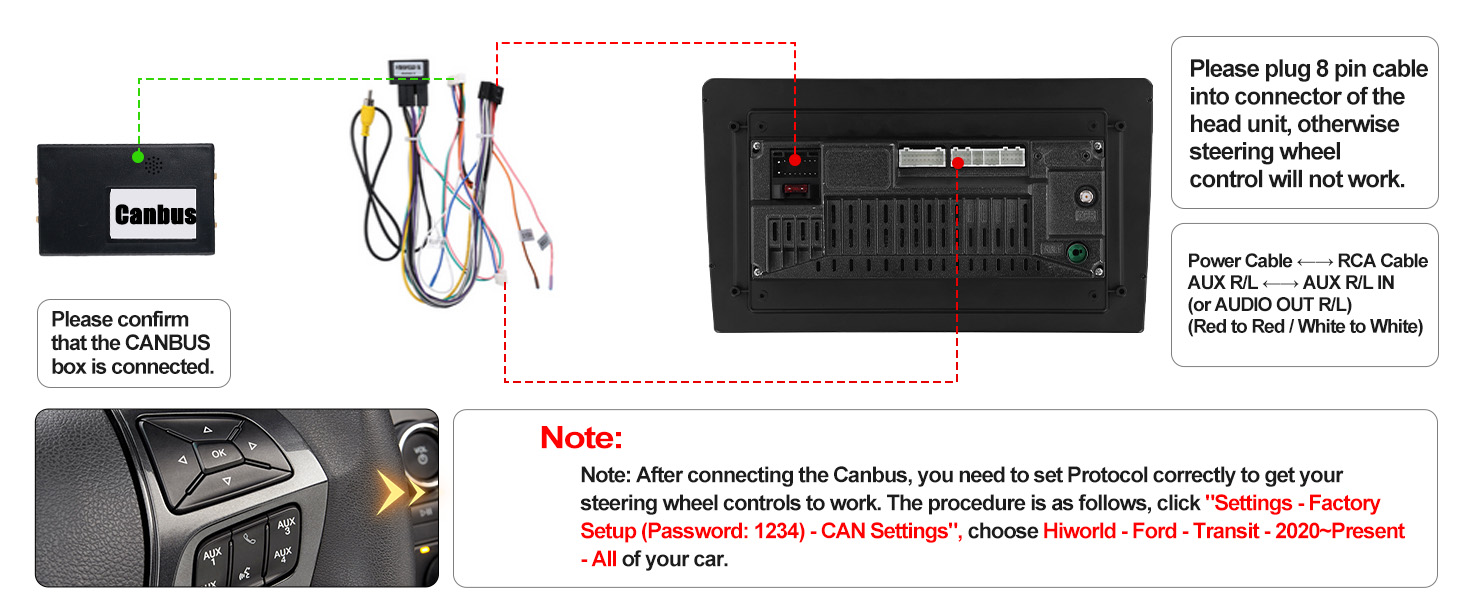

  1. Please select Protocol via: Settings – Factory Setup (Password: 1234) – CAN Settings – Hiworld – Ford – Transit – 2020~Present – All. Restart your car

  2. Or change it into other canbus brands or car models until you get it to work

• Why no image when reversing?

  1. Please check camera connection, do not insert RCA cable, please use the Camera Input

  2. Select camera resolution via: Settings – Factory Setup (Password: 1234) – Backcar Source Settings

  – "NTSC/PAL" for CVBS

  – "AHD/25" for AHD

---

Product Description

1.
2.
3.
4.
5.
6.

Built-in wireless Apple Carplay & Android Auto, 4GB RAM+128GB ROM Android 15 car stereo with 10″ incell 1280*720 touchscreen, supports GPS & WiFi, Bluetooth, FM/RDS, mirror link, backup camera, fits

Ford Transit Custom 2020-2024 (High-End)

Not Fit: Without OEM Screen (1-Din Type, Low-End Version)

1. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   Wireless Apple Carplay

   Wireless Apple Carplay



   • Wireless Connection
   • Phone, Music, Navigation & More
   • Siri Assistant

2. Wireless Android Auto



   • Only Wireless
   • Hands-Free & Safe Driving
   • Google Assistant
   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   Wireless Android Auto

3. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   Split Screen Function

   Split Screen Function



   • Multi-task function
   • Easy to read
   • Radio/music/Video while using navigation

4. Protocol Box Settings



   • If original steering wheel control does not work
   • If original car information does not show
   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   景安驰 Protocol Box Settings

5. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   景安驰 Rear Camera Resolution Settings

   Rear Camera Resolution Settings



   • If camera screen is black or blurring

6. Touch Screen Calibration



   • If touch screen is unresponsive or freezing
   • If the touch screen is inaccurate
   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   景安驰 Touch Screen Calibration

Car Radio with Wireless Android Auto

Android Auto for Android: Android Auto is specially created by Google for Android phones, similar to CarPlay, you will be able to operate various Apps from your phone and your phone screen can still work independently.

Make your driving much safer by simple and convenient controls.

1.
2.
3.
4.
5.
6.

1.
2.
3.
4.
5.

Note:

1. Please check your car dashboard and CD Back before order.

2. Only connect the Main Connector.

If uses original backup camera, please follow the connection of picture 3

Android Car Stereo for Ford Transit Custom Radio (With OEM Display)

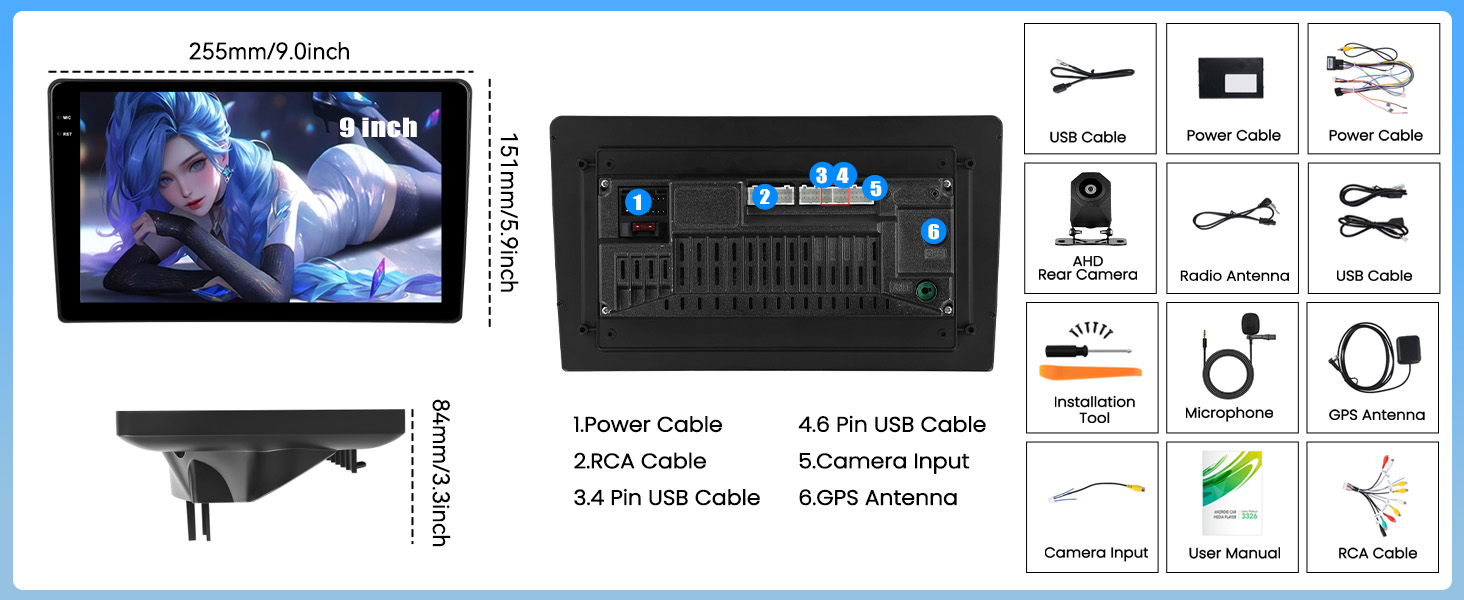

System	Android 15
Memory	4GB (RAM)+128GB (ROM)
Chipset	RK3326
MCU	G0001ALT
Sound processor	TM2313
Operating speed	1.5GHZ
Screen size	10”
Screen material	incell

Screen resolution	1280*720
Bluetooth version	5.0
Radio chip	UMW2652
Radio Band	FM/RDS
Power output	4*45W
Power amplifier chip	YD7388
Reversing input	AHD/CVBS
Factory setting keyword	1234

• Why no Audio? / Why FM Radio has audio but Bluetooth and Carplay does not get audio?

  1. Connect “AMP Cont” of RCA to ACC

  2. For power amplifier – connect the power cable of Amplifier to the 12V ACC wire of our product

  3. Open the “amplifier” icon on the drag down page of the top bar

  4. NOT compatible with Premium Audio System

• Why the radio does not turn off and keeps draining my battery?

  1. If your car wiring has been modified before, please find you car real ACC wire and connect to the red wire of car radio power cable

  2. Use a multimeter to check for leaks when car is off. If Canbus is leaking, please remove it and reach us

• Why Bluetooth or WiFi signal is weak? / Why is there no network even though WiFi is connected?

  1. There is a sepearetely backup camera input cable, please insert it to the rear of car radio. It will enhance Bluetooth and WiFi signal

  2. The android car stereo only supports 3G Internet, please confirm the Internet is 2.4Ghz

• Why steering wheel control does not work?

  1. Please select Protocol via: Settings – Factory Setup (Password: 1234) – CAN Settings – Hiworld – Ford – Transit – 2020~Present – All. Restart your car

  2. Or change it into other canbus brands or car models until you get it to work

• Why no image when reversing?

  1. Please check camera connection, do not insert RCA cable, please use the Camera Input

  2. Select camera resolution via: Settings – Factory Setup (Password: 1234) – Backcar Source Settings

  – “NTSC/PAL” for CVBS

  – “AHD/25” for AHD
