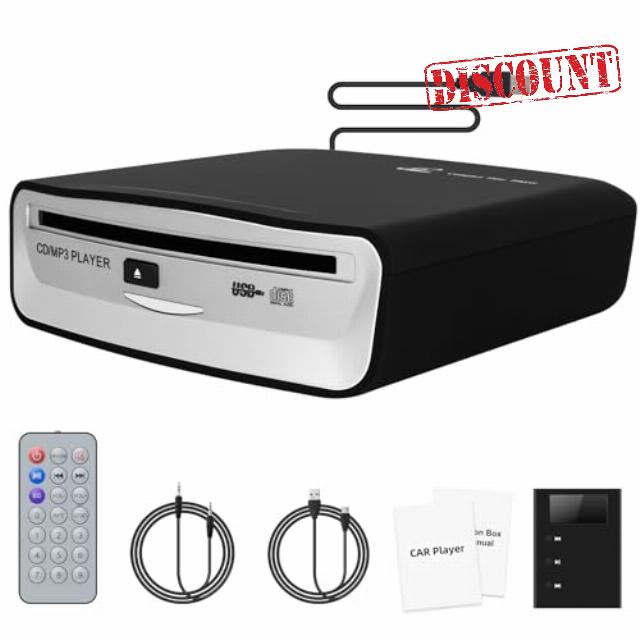

Car CD Player with USB Port – Timzeit External Universal CD Player for Car Truck with AUX Cable and Remote Control, External CD Drive for Laptop, PC, TV, Compatible with Android Car Radio

• Wide compatibility with many formats: This car CD player with USB port is compatible with products and devices that use Android 4.4/5.1/6.0/7.1 or higher. It supports CD, CD-R, CD-RW, MP3 and WAV formats. It can not only be used in the car, but also connects to your computer, laptop, TV and other devices.
• Easy installation and easy to use: this portable CD player for car can be easily connected – without external power supply and without complex wiring. In addition, this car CD player has an additional audio adapter kit that offers three connection modes and is therefore compatible with most vehicle models on the market. Its compatibility significantly exceeds conventional products. After successful connection, you can easily control playback via the included remote control, the touchscreen in the car or the buttons on the steering wheel – especially safe and convenient while driving.
• USB mode: If your car radio has a USB port and supports playback of WAV or MP3 audio files. All you need to do is plug the included USB cable into your car's USB port – no extra adapter needed. The player is powered by the USB cable and the sound is transmitted. The CD will start automatically once everything is connected. (Note: please be patient until the CDs have been read. Some car radios may need to switch to USB mode.)
• AUX and FM mode: If your car radio does not support a CD player car directly or you do not hear any sound within a few minutes after the USB connection, you can use the AUX port. For both modes – AUX and FM – the included decoder (audio adapter) is required. (Note: please be patient while reading the CD. For some car radios, the AUX mode must be switched on manually. The FM mode must be manually switched on on the car radio to make it work.)

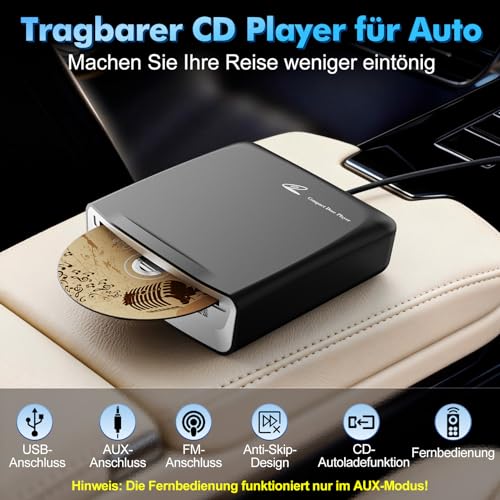

• Anti-skip and shockproof playback: This portable car CD player is equipped with a professional skip protection chip that allows uninterrupted playback even on bumpy roads. In addition, four non-slip rubber feet on the bottom ensure that the disc runs reliably even on uneven surfaces. This means that it offers a consistently clear and interference-free sound on the go.
• The perfect gift: This external car CD player impresses with its compact and user-friendly design and is therefore a perfect gift for all CD collectors. For car owners who do not want to miss out on their CD music on the go, it is an ideal portable player. With its elegant appearance, comprehensive accessories and USB port, it is suitable for both younger and older users.

The original vehicle infotainment system does not have DVD/CD function, but supports audio CD playback.

1. Connect the USB cable of the drive to a USB port in the vehicle. Then you can insert the CD into the disc slot of the drive. The drive automatically retracts the disc and starts reading the music.

2. Then search for the music player symbol in the infotainment system. Click USB in the player interface to see the music list. You can select titles from this list. Control via steering wheel buttons (if learning) is also supported.

The converted Android large display main unit can support the CD operation steps.

1. Connect the USB cable of the drive to a USB port in the vehicle. (Choose any USB port. If no audio data is detected, please switch to another USB port.) Insert the CD into the drive slot The drive automatically retracts the disc and starts reading the music.

2. Then find the music player icon in the central display and tap USB in the player interface. After the drive has read the tracks, you can select a track to play. Steering wheel buttons control is supported.

Other Devices

Such as smart TV, TV set-top box, laptop/desktop PC (without recording function), tablet computer, outdoor speakers, home audio amplifier and other devices with USB interface – if they support WAV format, playback is possible. This makes it a real all-purpose device for all your applications.

Troubleshooting and reviewing

1. If the CD cannot be read, this is because the vehicle main unit is not compatible with the WAV music format. In this case, you can either use the AUX input or an FM transmitter to transmit the audio signal to the central control system (the accessories required for the connection are included).

2. To check the performance of the CD drive, you can connect it to the USB port of a desktop computer or laptop and insert a CD. If the contents of the CD can be read, the drive will work properly.

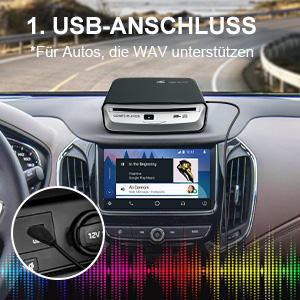

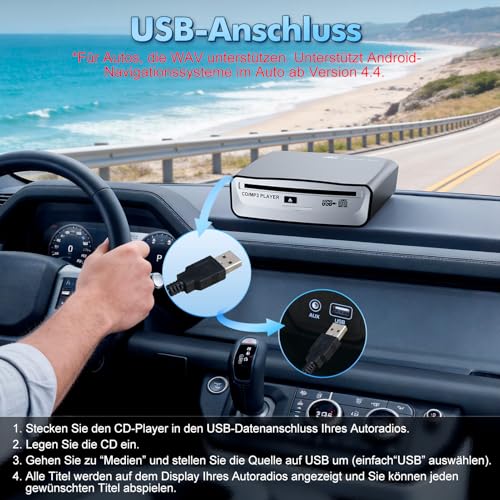

For cars that support WAV

1. Connect the CD player to the USB port (USB 2.0) of your car radio.

2. Insert the CD.

3. Go to "Media". Change the source to USB (just select "USB").

4. After connecting the CD/DVD player to your car stereo via the USB port, all tracks in WAV format will be displayed on the display of your car radio.

5. You can select one of the tracks to start music playback.

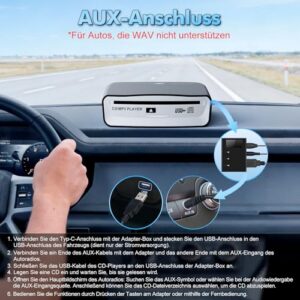

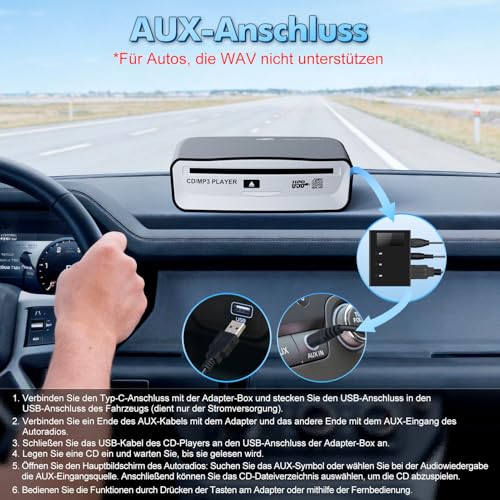

For cars with AUX input

1. Connect the Type-C port of the decoder to the USB port of the car radio.

2. Plug one end of the audio cable into the decoder and the other end into the AUX input of the car radio.

3. Connect the CD drive to the USB port of the decoder and then insert an audio CD.

4. Go to the main surface of the car radio and click on the AUX function. At this point, you can play music in CD-DA format.

6. Press the button on the decoder to perform the corresponding function, or use the included remote control.

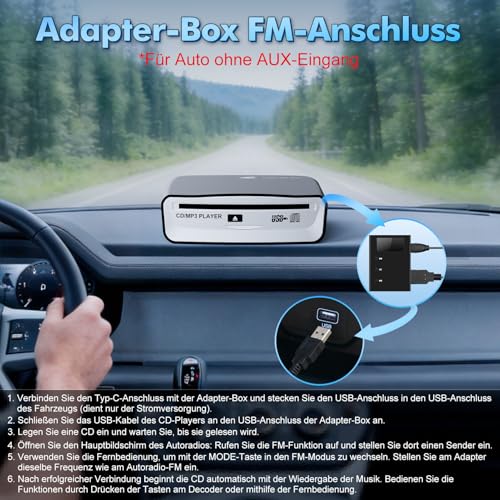

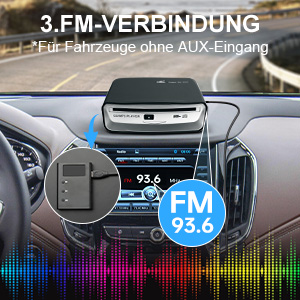

For cars without AUX input

1. Connect the Type-C port of the decoder to the USB port of the car radio.

2. Plug the drive into the USB interface of the decoder and then insert the CD-DA disc.

3. Enter the main surface of the car radio, activate the FM function and set one of the following frequencies: FM87.1 / FM87.3 / FM87.5 / FM87.8 / FM88.2 / FM88.5 / FM88.7 / FM107.3 / FM107.5 / FM108.0 Press the "Mode" button on the remote control at the same time to set the same frequency on the decoder.

4. Now you can listen to CD-DA music.

5. Press the button on the decoder to perform the corresponding function, or use the included remote control.

Important notes:

1. The inverted position of the product reduces both its reading performance and shock resistance. It is strictly forbidden to turn the device upside down if there is a disc inside.

2. As this product has been professionally assembled and calibrated, you must not disassemble or re-adjust it yourself.

3. Do not use electrical components beyond their specified rated values.

4. For proper operation, the supply voltage on the pins must be between 4.75V and 5.25V. The rated voltage is 5 V.

5. Storage: Do not store the product in places with high temperature, high humidity or strong dust.

6. Handling: Excessive pressure may deform the case.

7. Please do not insert a second disc if one is already in the drive.

8. Do not expose this product to bumps or falls.

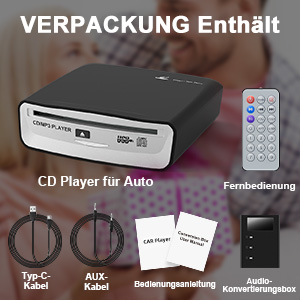

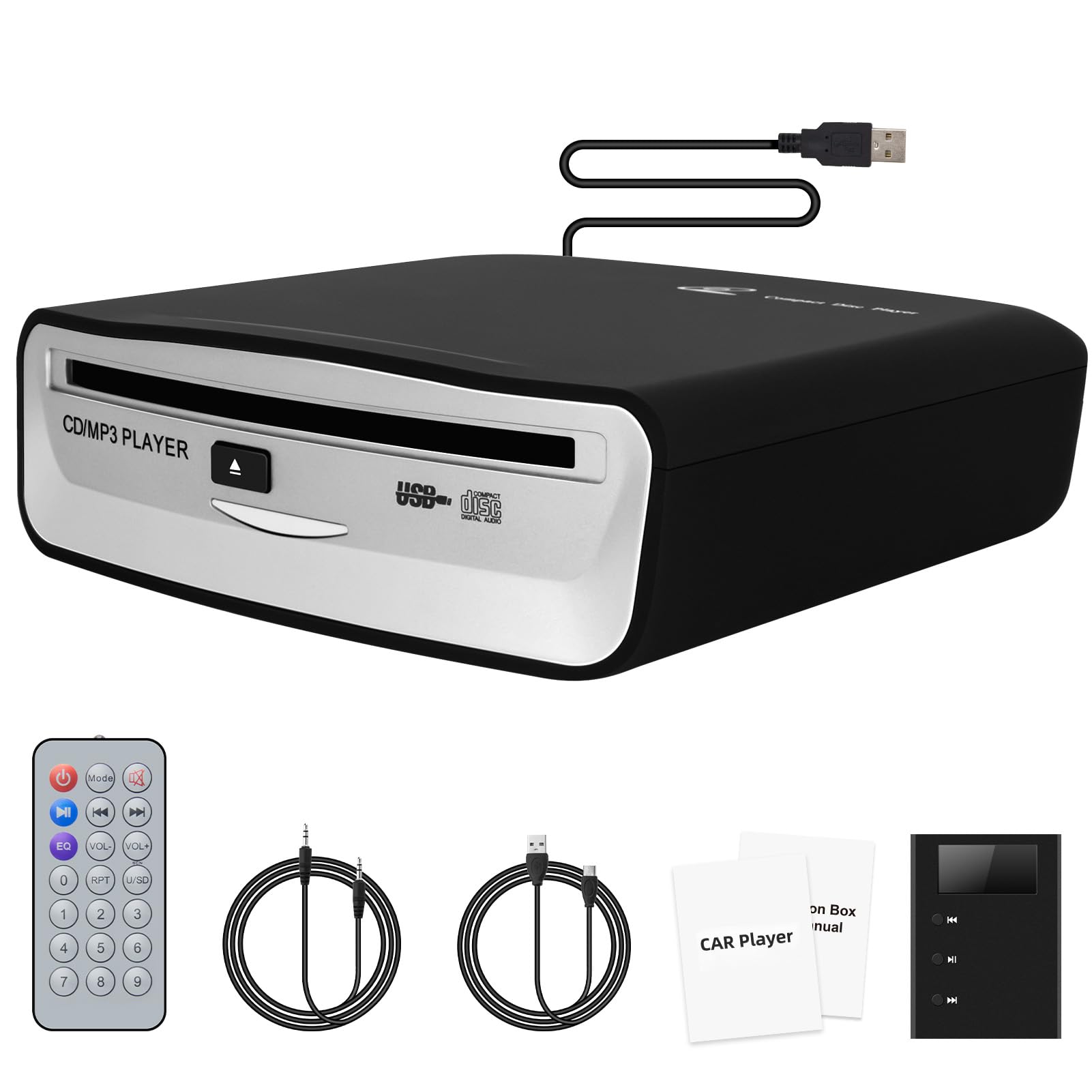

Included in the box contents

1 x CD player for car

1 x remote control

1 x audio conversion box

1 x Type-C cable

1 x AUX cable

1 x user manual

Product features:

Working voltage/current: DC 5 V/min 1 A

Dimensions: 155 mm (L) x 150 mm (W) x 40 mm (H)

Operating temperature range: -10°C ~ +70°C

Compatible discs: diameter 12 cm

External interface: USB 2.0

Installation position: horizontal, with the disc slot upwards

Loading mechanism: retract/ejection system (slot-in)

---
