Antenna Tuner for Radio Equipment 1.8 55mhz, Mini Automatic Tuner with 0.96in Oled Display, Uhf Connector Type C Charging Port Automatically Tunes for Radio Stations

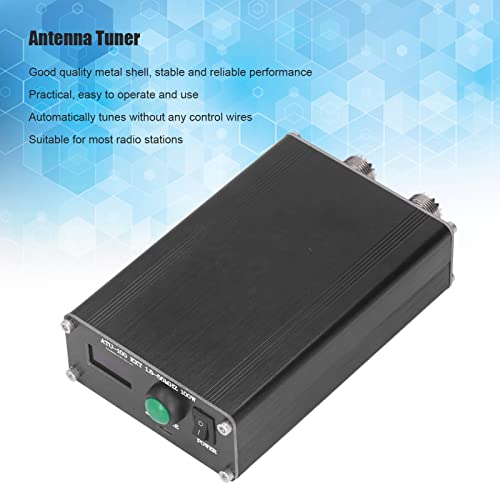

• STABLE AND PRACTICAL: Adopt good quality metal shell, possess stable and reliable performance, practical, easy to operate and use, long service life
• FOR RADIO STATIONS: Antenna tuner automatically tunes without any control wires, suitable for most radio stations

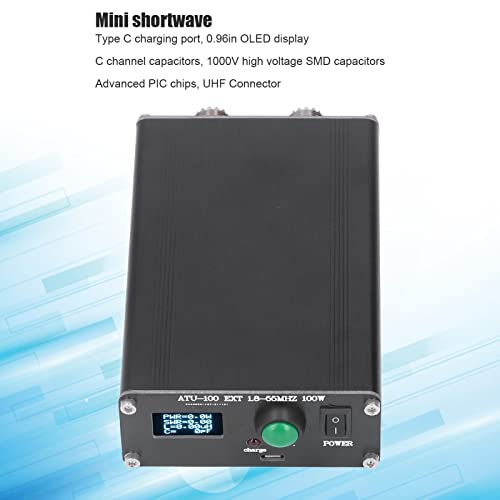

• 0.96IN DISPLAY WITH HOUSING: Mini shortwave automatic antenna tuner come with Type C charging port, 0.96in OLED display
• EXCELLENT CONFIGURATION: C channel capacitors adopt good quality 1000V high voltage SMD capacitors, and advanced PIC chips. UHF Connector
• resistants ALUMINUM ALLOY: Made of good quality aluminum material, light weight, possess good strength and good resistance

Spec:
Item Type: Antenna Tuner
Material: Aluminum alloy
Model: ATU-100
Display: 0.96in OLED
Operating Frequency: 1.8-55 MHz
Battery Model: 3.6V lithium battery 1350MAH
USB Charging Current: 1A
Maximum Operating Power: 100 ​
Maximum Possible Measured Power: 150 ​
1 Watt: Necessary to start setting the minimum power
Minimum Possible Measured Power: 0.1 ​
Measurement Steps With Power Up To 10W: 0.1W
When Robust Measurement Steps STI Above 10 ​>​: 1 watt
Power Measurement Accuracy: 10%
Specified Maximum Inductance: 8.53uH capacitance
Minimum Installation Step Size of Inductor: 0.05μH
Maximum Mounting Capacity: 1869 pF Capacitor
Minimum Installation Step: 10
packing list:

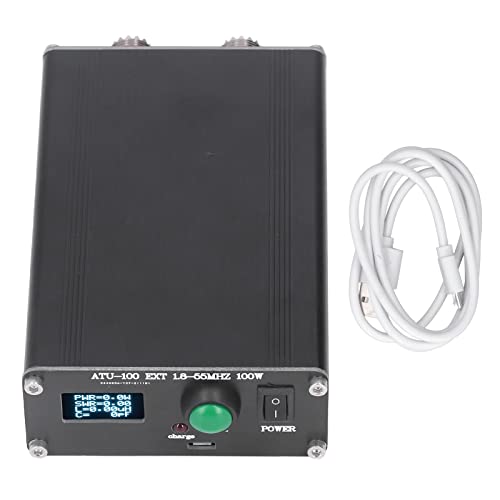

1 x Host
1 x USB Cable
1 x User Manual
Notice:
1. Insufficient adjustment may occur within 5W. So don’t try to go below 5W.
2. It is recommended that the maximum power should not exceed 30 ​ during tuning. (it can be set to 100 ​ after tuning, and work at this power, otherwise it is easy to burn)
3. You need to use 9‑12V to start the ATU‑100. If you use a power bank or computer USB port to output power, you cannot start the ATU‑100 because their voltage is too low.
