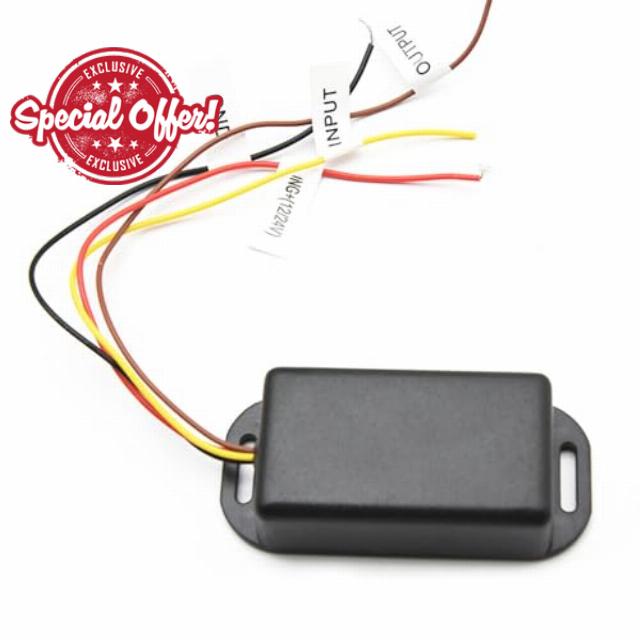

1PC Ohm Range Converter Fuel Gauge Interface Module Ohm Signal Adapter Fuel Meter Signal Converter FM101 Fuel Tank Interface

• Universal solution for tank sensor and indicator instrument compatibility: this module closes the gap between tank sensors and indicators with different ohm resistors (e.g. B. 0-190Ω, 240-33Ω) It allows the use of any fuel gauge with any tank sensor and thus solves incompatibility problems during vehicle upgrades or repairs.
• PRECISE AND CUSTOMIZABLE CALIBRATION The microprocessor allows for linear and accurate display across the entire measuring range. You can individually program the positions for "full", "half" and "empty" to ensure an optimal match with your tank.

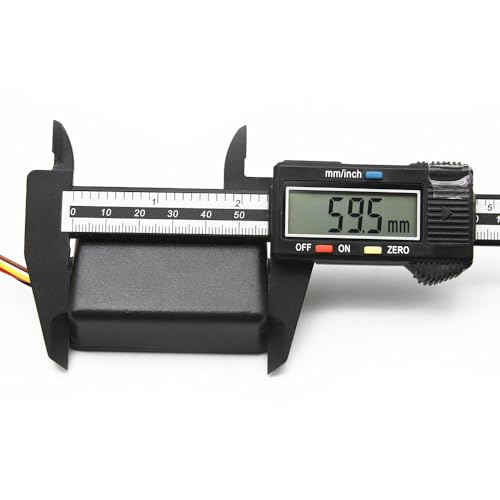

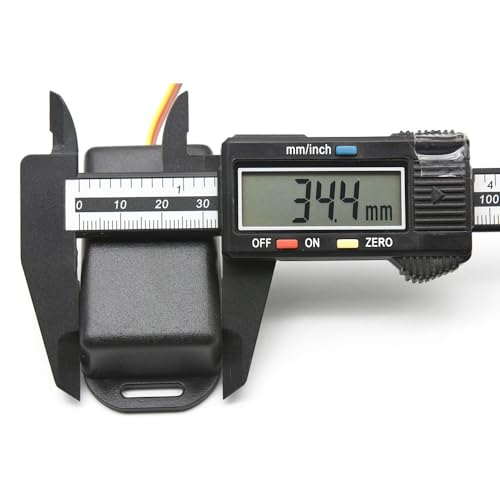

• Easy installation: with the mini dimensions of only 20 (W) x 16 (H) x 35 (D) mm, the module can be installed discreetly and easily in most vehicles near the instrument panel or tank sensor.

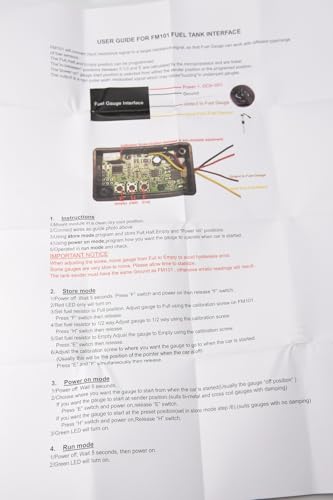

• CLEAR INSTRUCTIONS Important note for stable readings: Make sure that the tank sensor and module have a common ground connection to prevent display fluctuations. When calibrating, always turn the adjustment screwdriver from "full" towards "empty" to avoid measuring errors (hysteresis).
• Easy operation with two modes for different display types: choose between two start modes: either the indicator starts from the current tank sensor position (ideal for damped instruments) or from a programmed output value (ideal for unattenuated instruments). The status LED (red/green) gives clear feedback about the operating mode.
