CAMECHO Brake Light Reversing Camera for Renault Master/Opel Vauxhall

CAMECHO Brake Light Reversing Camera for Renault Master/Opel Vauxhall Movano/Nissan NV400 Van 2010-2016
CAMECHO Brake Light Reversing Camera for Renault Master/Opel Vauxhall Movano/Nissan NV400 Van 2010-2016

CAMECHO Brake Light Reversing Camera for Renault Master/Opel Vauxhall Movano/Nissan NV400 Van 2010-2016, AHD 720P/CVBS Rear View Reverse Camera Waterproof Wide Angle Night Vision Parking Assis

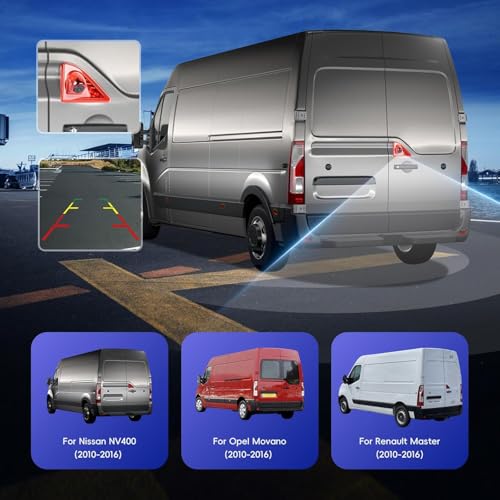

  • [APPLICABLE CAR MODELS] – The reversing camera is especially suitable for 2010-2016 Renault Master / Opel Vauxhall Movano / Nissan NV400 Van, replacing the lens of your current high level brake light, look like original factory fitted equipment

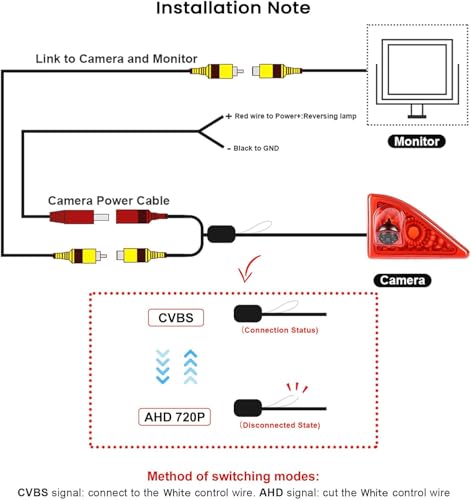

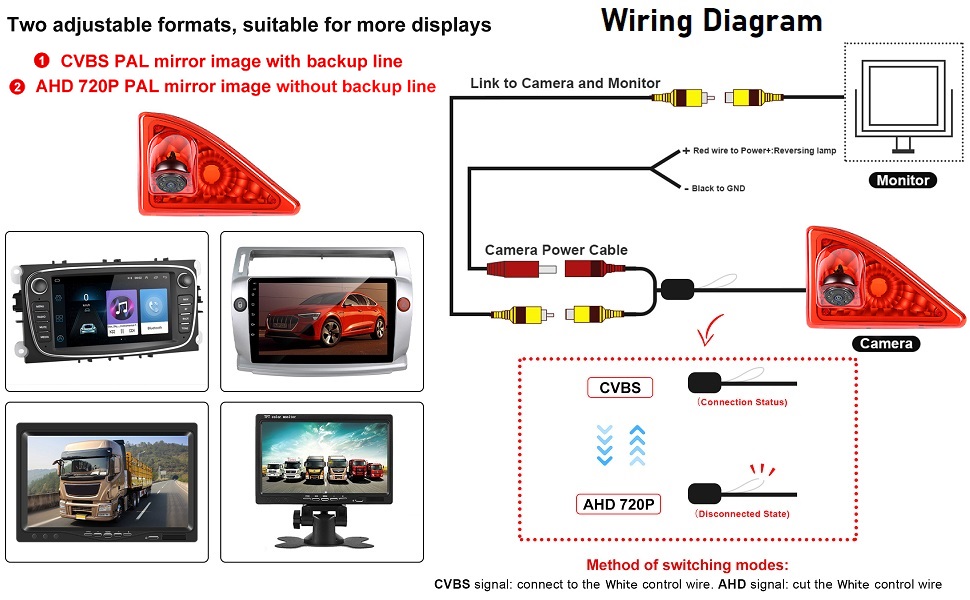

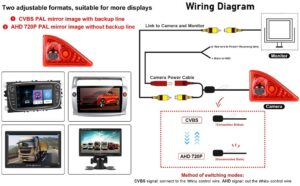

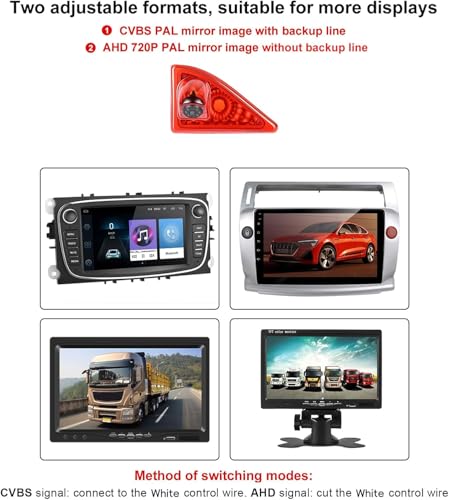

  • [AHD BACKUP CAMERA] – Default 640*480 CVBS image with guidelines (NTSC Signal). Or you can cut the white control line to get 1280*720 high resolution and clearer rear view imaging (Without Guidelines) (PAL Signal)

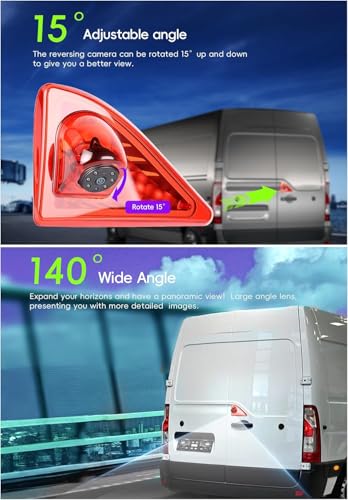

  • [SAFER DRIVING] – 140° wide viewing angle and 15° up and down adjustable eliminate blind spots, avoid children or pets around your car and obstacles, and help you parking and reduce accidents

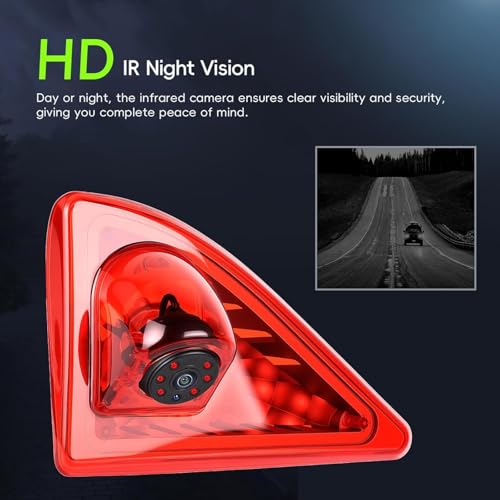

  • [IR NIGHT VISION] – Infrared night vision with 6-LED provides you with a clear view at dark night, which is practical to use

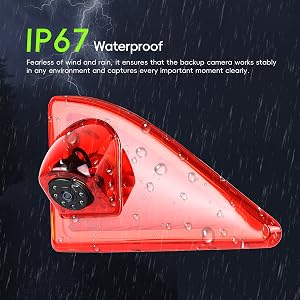

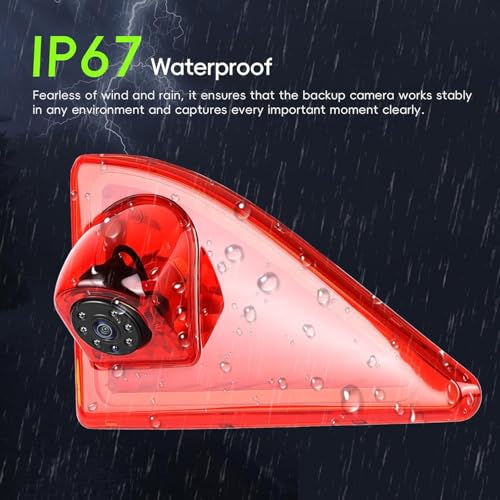

  • [IP67 WATERPROOF] – Car wash, rainy days, and even storms will not affect the results. Shockproof and dustproof, long durability

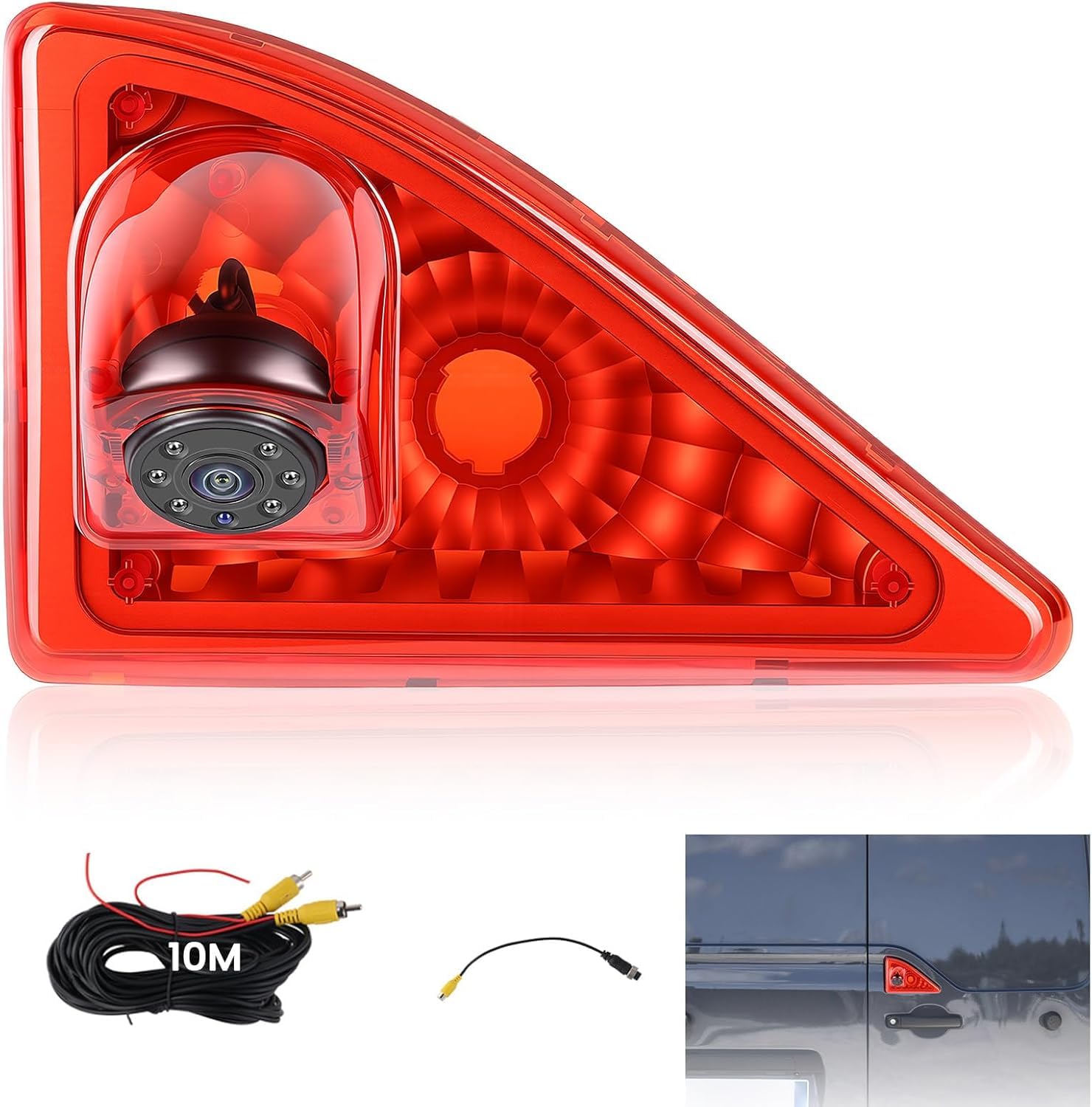

  • [EASY INSTALLATION] – In the kit are 1* 10m Video Extension Cable, 1* 1m Power Cable, 1* Video Adapter Cable. Simple installation – unplug your current light and connect the rear camera, fix the base with screws on the back of your van

HD Reverse Camera for Mercedes Benz Sprinter Brake Light

Note:

  1. Voltage: DC 12V
  2. If the image on the screen is blurry, flickering, or horizontal/vertical stripes appear, please check all power and video connections. Use different ground points (iron parts) as far as possible and wrap the power plug and video plug with insulation tape to isolate interference. If these problems persists, please order a 12V DC power adapter filter rectifiter to solve problems.

Ensure safe and confident reversing, specially designed for Renault Master / Opel Vauxhall Movano / Nissan NV400 2010-2016 Brake lights

Brake Light Design Wide Angle Rear View Reversing Camera

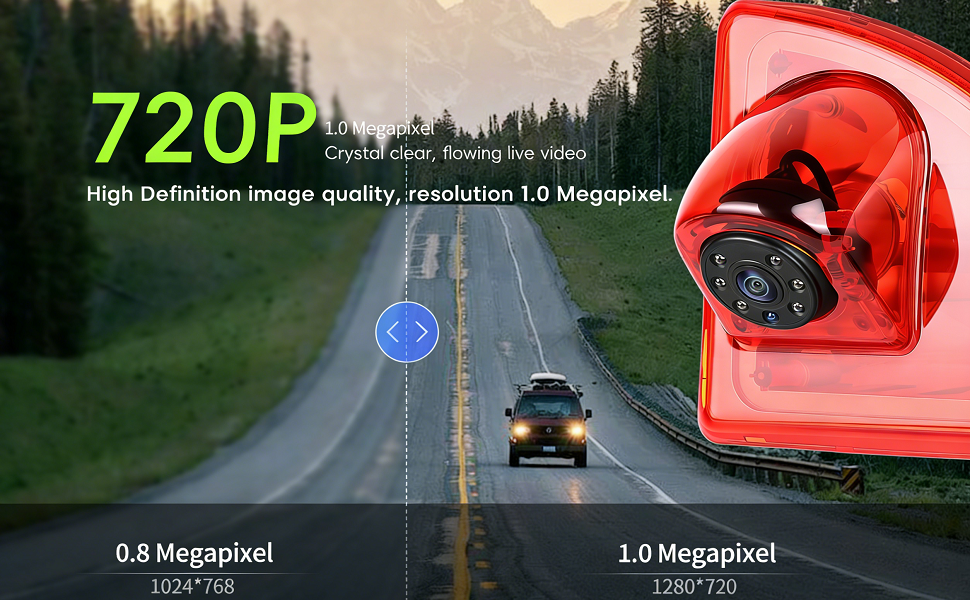

  • AHD image 1280*720Pwithout guide line (PAL system)
  • CVBS image640*480P with guide line (NTSC system)
  • – 6-LEDIR night visionto provide a better view at dark
  • 140° wide viewingangle without blind spots (15˚ up and down)
  • IP67 Waterprooffor all weather conditions
  • – Easy intallation with 10m extension cable (AV connector only for aftermarket radio)

IP67 Waterproof

140° Wide Angle

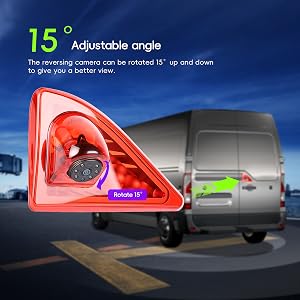

15° Adjustable Angle

Rear Camera Specification

  1. Input Voltage: 12V
  2. Input Current: 100mA
  3. Waterproof: IP67
  4. Pixel: 1 MP
  5. Resolution: CVBS 640*480 (Mirror) / AHD 1280*720 (Mirror)
  6. Format: PAL
  7. Frame rate: 25fps
  8. Viewing Angle: [V]80°±5° [H]140°±5°
  9. Suit for:

  • Nissan NV400 2010-2016
  • Opel Movano 2010-2016
  • Renault Master 2010-2016

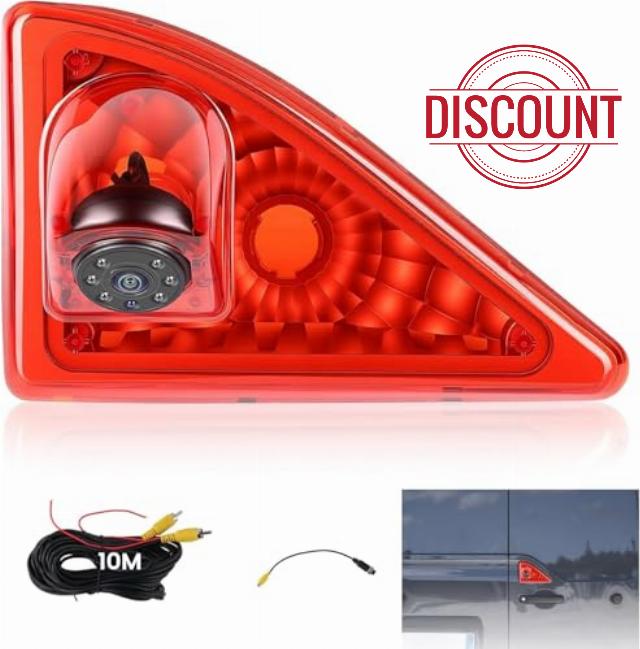

Reversing Camera Package Content

  • 1* AHD Backup Camera
  • 1* 10m Video Extension Cable
  • 1* 1m Power Cable
  • 1* Adapter Cable
  • 1* Stickers

SKU: B0G2VWNX1F
Dimensions: 19.5 x 5.4 x 12.5 cm; 500 g
Manufacture: CAMECHO

Product Description

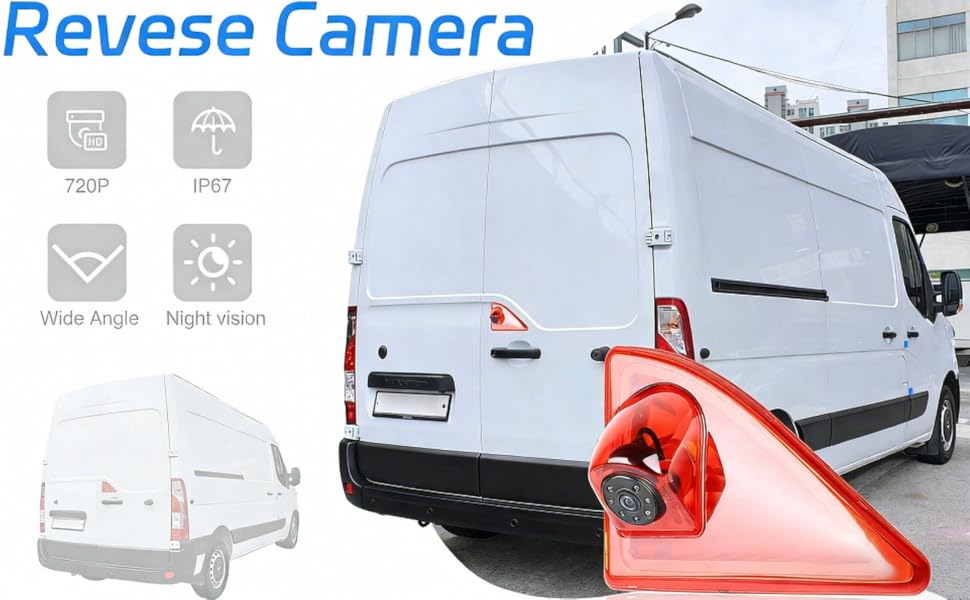

Text reads 'Reverse Camera'. Multiple views of a white cargo van showing backup camera mounting location and installation on rear door.Vehicle backup camera system display showing multiple viewing angles of a van. Blue-tinted interface with split screen views and guidance markers.Text shows '140° Wide Angle'. Demonstration of a vehicle backup camera view showing wide-angle perspective of area behind a white van or vehicle.Text reads 'HD IR Night Vision'. Product advertisement showing red triangular automotive light or camera with split image comparing regular and night vision road view.Technical diagram with measurements and specifications showing red triangular-shaped components, including power cable and adapter details with dimensional annotations.
