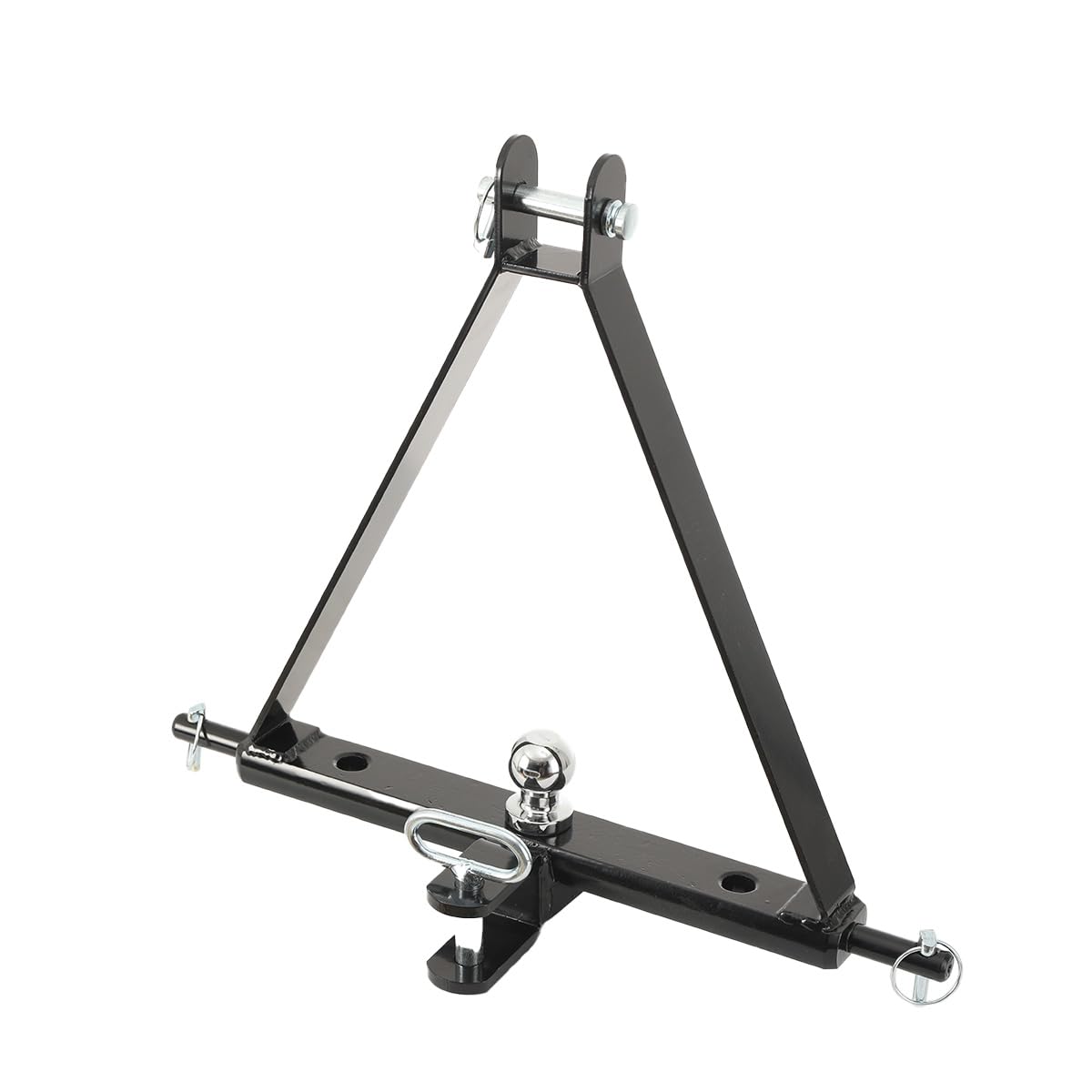

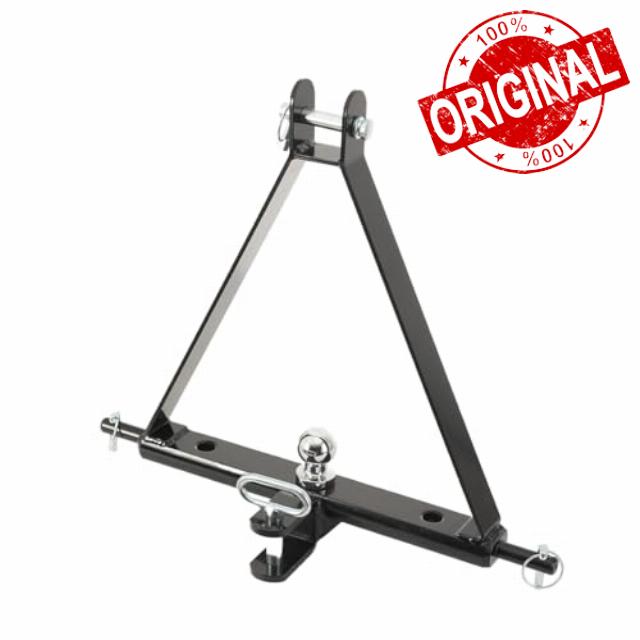

TABODD 3 Point Drawbar Trailer Hitch, 3 Point Tow Hitch Tractor Mounted Towing Cat 1 Ball Pin 610mm, Farm Rail Triangle Cat.1 with Coupling Pi

• Our three-point suspension rail is a multifunctional and durable suspension device, specially designed for agricultural applications.
• This kind of suspension device has many advantages and can ensure safe and efficient use.
• With a length of 645 mm and an anti-twist device, this Category 1 drawbar is ideal for tractors.
• HEAVY DUTY – Black powder coated steel frame, sturdy and durable, will not rust or corrode during short trips near hotels.
• EASY TO INSTALL – Used as a quick replacement device at the rear of the tractor, making it easy to assemble and disassemble quickly.

Three-point suspension with crane-reliable tractor hanger

Description:

Two supports overlap in one solution.

Sturdy three-point shooting, torsion protection

Made of Steel, can withstand loads up to 3.5 tons.

Ideal for agricultural applications.

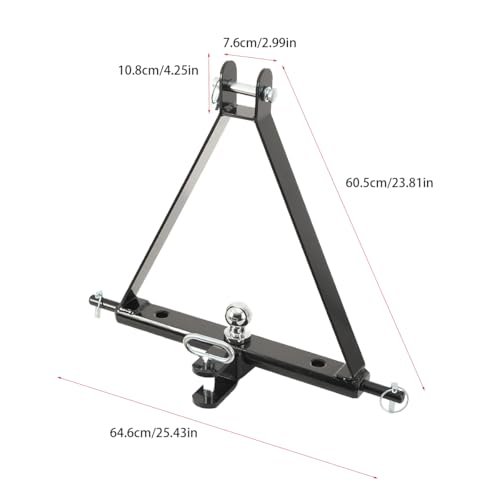

Size: 645 x 160 x 595 mm

Main Material: Carbon Steel

Product Type: Connector

Maximum Load: 3500 kg

Pull Rod: 61.75*30mm

Opening Size: 54mm

Pin: 19.9/18.9/9.8mm

Trailer Ball Diameter: 50mm

Adjustable Hole Diameter: 23mm

Tow Hitch Frame Contains:

A Frame Triangle

Built In Drawbar

Drawbar Pins

50mm Tow Ball

Hitch Pin with Handle
