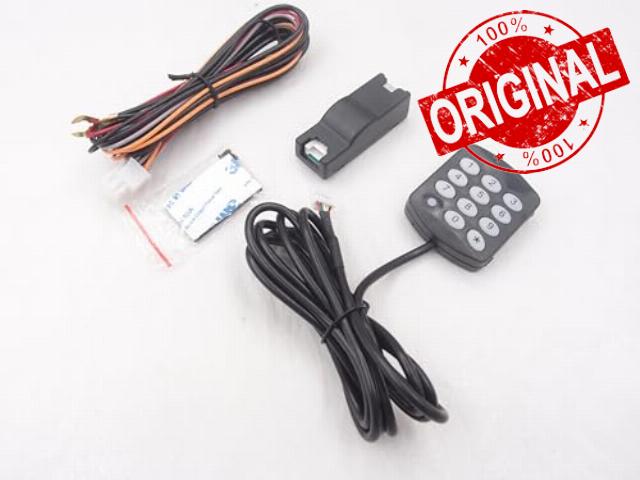

Vehicle anti thief and anti hijack lock,car immobilizer, vehicle rental password lock,car alarm

• No code no use , keypad password lock for all +12V vehicles ,inculdes ignites by key blade or push button one wire two way communication, password saved in relay box which hides in the car, more securite and safe

INSTRUCTION MANUAL

First default password *5341 .Primary password from the manufacturer, required to change immediately after installation
Disarm:
1)Enter*password*, the keypad will beep twice, within 60 seconds, turn ACC to ON, the LED will be off and the system is disarmed.
2)The keypad will beep once at each press on the button. After password is entered and , if the password is correct, the keypad will beep twice: if the password is wrong, the keypad will beep three times.
3)When entering the password, if you press wrong button, you need to stop press buttons, and then Returns the correct password from the beginning including the star button.
The keypad will be locked for 3 minute if you have entered password wrongly for three times ( continuously). The star buttons will flash fast and beep every 5 second. After the 3 minute it will long beep mines keypad get out of look mood.
Arm:
A)Active arming: 60 seconds after ACC OFF, the LED will be On all the 60 second. The system will enter armed status automatically and the LED indicator will flash constantly.
B)Passive arming:
1）ACC OFF, press * for 2 seconds, the keypad will give long beeps to indicate the system is armed and the LED indicator will flash constantly.
Modify password:
Armed mode, enter the default or your old password *_ _ _ _. Open ACC ON, enter twice new password *_ _ _ _BIP*_ _ _ _ the keypad will beep Melody, and the LED WILL OFF, the password is modified successfully.
New password can be ( * + 4 digit), You can not put same digits as 11, 22, *5341 , open ACC ON , twice *new password *_ _ _ _ bip *_ _ _ _ bip bip
To connect door – signal wire to activate anti hijack function, it need entey password within 60 seconds if door was opened when driving. If don’t connect door- wire ,it likes a normal immobilizer alarm , more easy to install
