CARCAT Ultrasound Rat Repellent for Automobiles – 4th Gen car Rat Repellent – red – Made in INDIA -Waterproof Rat Repellent for cars – 94% efficacy, cream

• ✔4th Gen ultrasonic rat repellent for cars ★ Advanced & Improved rat protection for car ★ CARCAT-RED car rat repellent ★ Protect car from rats ★ 24/7 protection with carcat
• ✔ ZigZag ultrasound ★ CARCAT-RED employs new ZigZag pattern ultrasound algorithm ★ Creates more nuisance for rat in car problem ★ Intermittent pulsing ultrasonic car rodent repellent device ★ 20% less power consumption than previous generation
• ✔ Green / Blue LED strobing ★ Maximizes rats dichromatic vision spectrum ★ Rats cannot see longer wavelength red light ★ Strobing Light carcat ultrasonic rat repellent for car
• ✔ Config – Touch key ★ Enable / disable features – ① Standby mode – when engine is running (works for both 12V and 24V system, default=enabled) ② Shutdown mode – Car battery low (<10.5Volts @ 12V and 21V @ 24V system) – prevent battery damage (default=Disabled) ③ 30 second audible beep (default=Enabled) ★ Smart configurable electronic rat repellent device
• ✔ Water Proof rat repellent for cars★ Water jet / spray resistant (only rat repellent which is water proofed) ★ Eco- friendly ★ Non hazardous ★ Uses minimal energy ★ Green ★ Easy Installation ★ Simple 2 wire installation to battery ★ No need to cut or strip any wire ★ Takes no time for installation ★ Helps to stop rats in car ★ ultrasonic rat repellent for cars ★ Best way to counter rat in car problem ★ Keep protecting car from rats 24/7

›

New CAT On The Block!

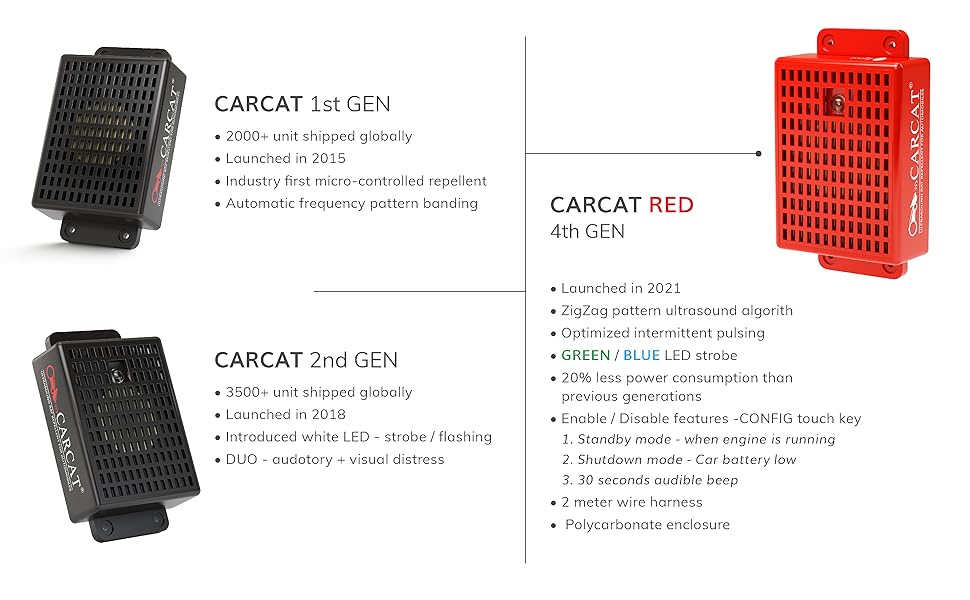

The CARCAT Story

2015-> 1st Gen -> CARCAT Ultrasound rat repellent (Launch)

2018-> 2nd Gen -> CARCAT-Duo – Ultrasound + LED(White) strobe

2021-> 4th Gen -> CARCAT-RED – Rat repellent system – ZigZag Ultrasound +Blue/Green LED strobe

What happened to 3rd Gen CARCAT?

CARCAT -3rd Gen was planned to launch in quarter-1 of 2020. But corona happened. The lockdown gave us time to up our research & development cycle and double the upgrades.

This new cat on the block (4th Gen) has an all-round– Hardware + Firmware + Enclosure upgrade.

Back in 2015 we could have never imagined CARCAT would evolve from just a rat repellent into a more complex rat repellent ‘system’, which also safeguards and monitors the cars battery for optimum use.

This would not be possible without the support and feedback from our valued customers and CARCAT fans.

It’s tough to get rid of rats-

Research shows rats depending on their species, share around 92 to 95% of their working DNA with us, humans. They are very intelligent and extremely territorial animals. No wonder, rats are one of the toughest pest to get rid of.

Rats are one of the most resilient and under estimated creatures on earth. They were here long before any human species walked the earth and they will probably be around long after we are wiped out. No wonder- they are one of the hardest pests to get rid of. There is probablyno 100% way to get rid of them, but with each new upgrade we use that understanding to try and reach closer.

Why do rats love your car’s engine area?

Rats being nocturnal animals come out from their day dens (sewers & gutters) at night in search of food. Your vehicle’s engine area is a safe 2nd home to take food stuff and eat in peace – away from cats / dogs. Post dinner they have a necessary teething need to sharpen the insides of their front incisor teeth. Failing which can be life threatening, cause their incisors grow at a rate of about 3 inches annually. The near endless supply of cables & wire under the hood ensures they have a juicy chew all night. Your car even has essential and clean water supply in the wiper spray ducts.

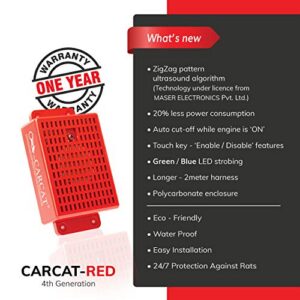

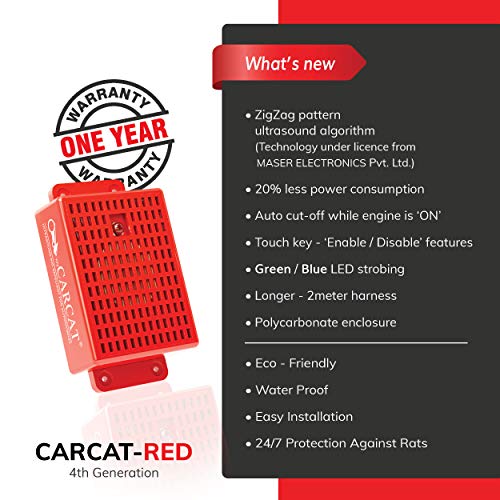

CARCAT-RED – 4th Generation

What's New!

✔ ZigZag pattern ultrasound algorithm – Creates even more irritation and auditory distress to rats

✔ Optimized intermittent pulsing – 20% less power consumption than previous generations (without hampering efficacy)

✔ Green/Blue LED strobing – Maximizes rats dichromatic vision spectrum (They cannot see longer wavelength red light and is not used)

✔ Polycarbonate enclosure – Higher heat endurance under the hood – Fire retardant grade

✔ 2-meter wire – Longer harness – Reaches further away from battery

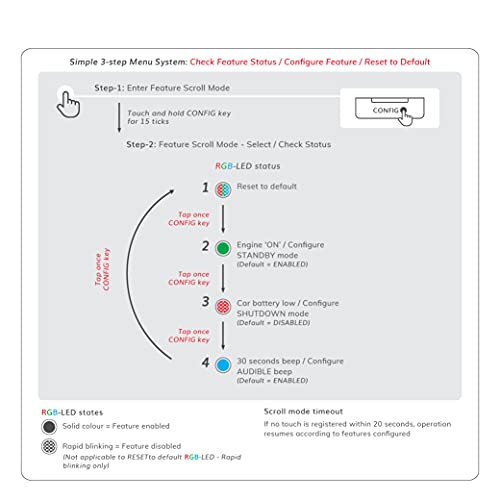

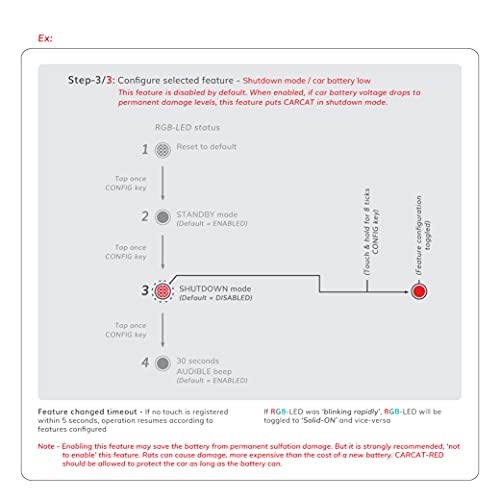

✔ Enable / disable belowfeatureswith config touch key –

1. Standby mode – when engine is running (works for both 12V and 24V system, default=Enabled)
2. Shutdown mode – Car battery low(<10.5Volts @ 12V and 21V @ 24V system) – prevent battery damage (default=Disabled)
3. 30 second audible beep – some customers are sensitive to audible beep (default=Enabled)

Happy Customers-

With a efficacy of over 94% and 6000+ happy customers in India and globally, CARCAT comes 2nd to none, making it the most trusted method to safeguard wires and ducts under the hood of your vehicle from rats.

A simple installation and 24/7 protection from rats and rodents, makes CARCAT the preferred and automatic choice for rat protection in cars, trucks and other vehicles across India and the globe.

CARCAT-RED! Engineered To Keep Rats Away!

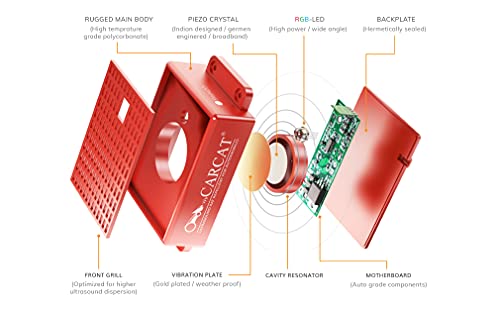

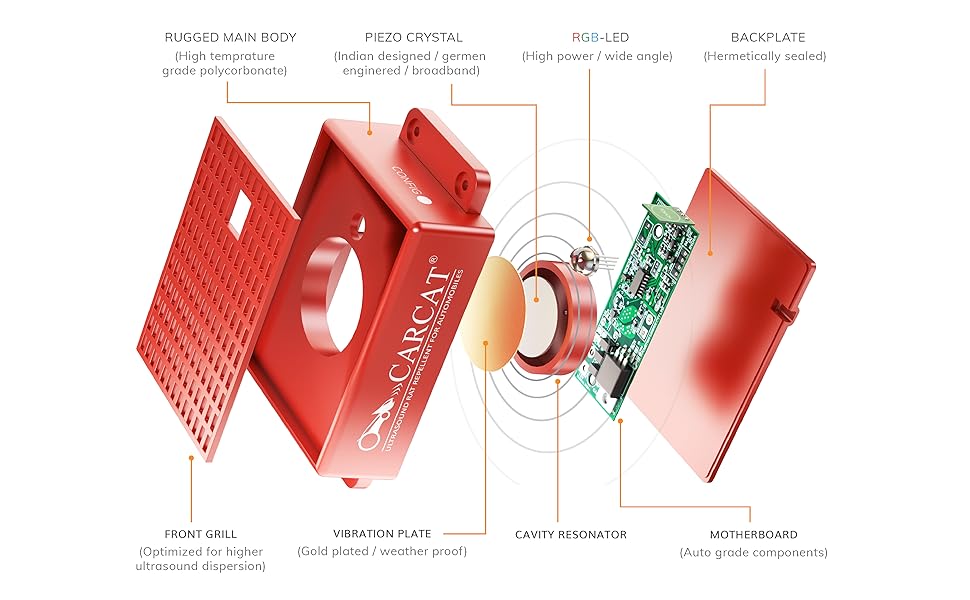

Built With The Best Design Approaches & Auto Grade Materials

✔ Heat and fire resistant polycarbonate enclosure

✔ Indian designed, German engineered piezo-electric crystal

✔ Broadband ultrasound emitting crystal & cavity resonator

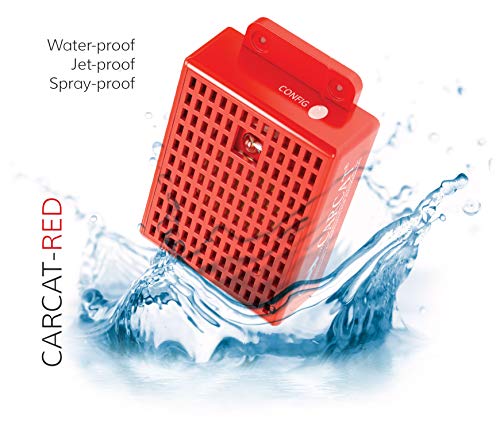

✔ Waterproof sealing

The Brain & Muscle Powering CARCAT-RED

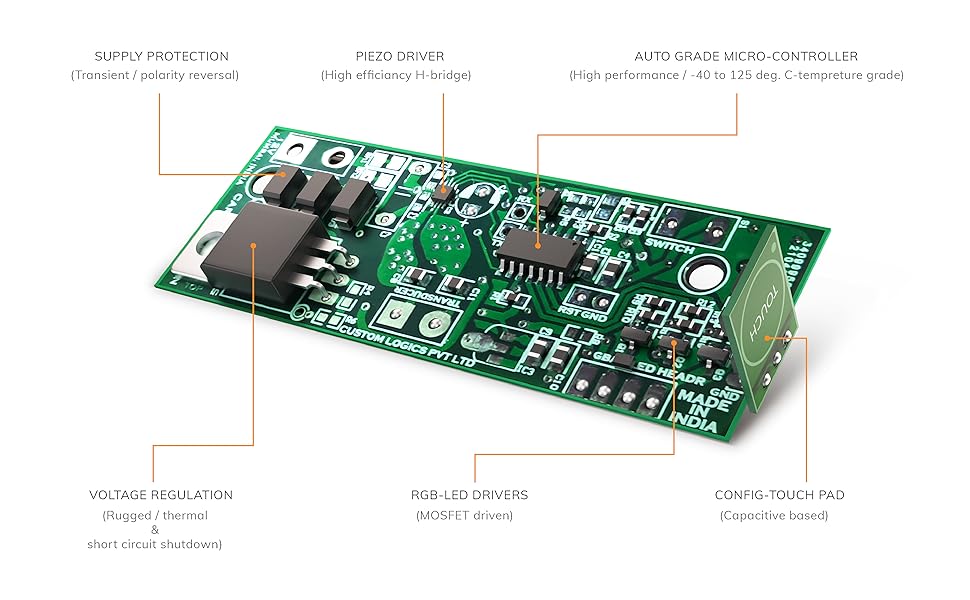

Rugged PCB Design!

✔ Auto grade electronic components – withstand high temperature under the hood

✔ Built-in surge protection circuitry

✔ Low-power microcontroller

✔ High-efficiency crystal driver & RGB-LED drivers

✔ Fail-safes to ensure CARCAT-RED functions without a glitch

CARCAT-RED current status & mode-

PriceCARCAT-RED StatusRGB-LED IndicationUltrasoundAudible BeepDefault Setting

	Add To Basket	Add To Basket	Add To Basket
£64.99£64.99	£64.99£64.99	£64.99£64.99
Active Rat Protection	Engine Is Running – Standby Mode	Car Battery Critically Low
Blue / Green Strobe	Solid GREEN	RED Blinks Every 2 Sec
ON ( ZigZag )	OFF	OFF
ON ( If Enabled )	OFF	OFF
Not applicable	Enabled	Disabled

Installation & Wiring Guide For CARCAT-RED

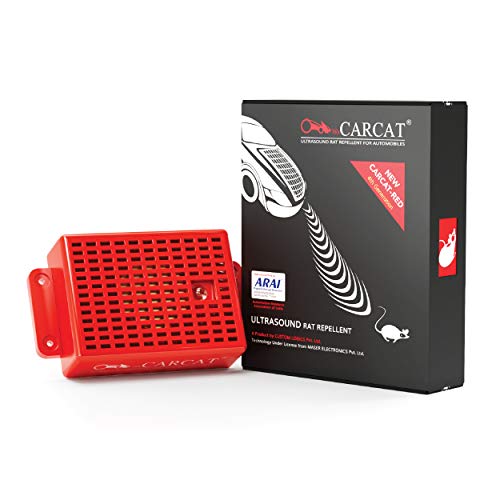

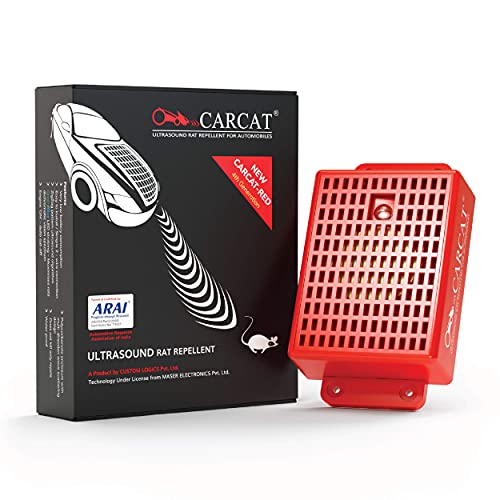

CARCAT- RED – Unboxed

A – CONFIG Key (Touch)

B – Mounting screws (x4)

C – CARCAT-RED

D – CARCAT cable (2 meters)

E – RGB LED (Strobe / Status)

F – Fuse box (Waterproof)

G – Ultrasound crystal

H (-) connector (Black insulation)

I – Front grill

J (+) connector (Red insulation)

Ensure Proper Installation

• The unit should be mounted on a hard rigid surface and secured tightly to the mounting surface using the screws provided.
• Mounting should be such that the front grill of CARCAT always faces hard metallic / plastic surfaces. (This ensures multiple reflections of ultrasound waves. Ultrasound energy is quickly absorbed by soft materials like foam and rubber, drastically reducing performance.)
• The unit should be mounted away from hot surfaces or engine parts.

Wiring CARCAT-RED to Battery Terminals

1. First remove fuse from fuse holder(F) .
2. Connect (+) connector (J) of CARCAT to (+) of battery.
3. Connect (-) connector (H) of CARCAT to (-) of battery.
4. Use cable ties to tidy up the wiring.
5. Re-insert fuse in fuse holder (F)

Standby time – A normally used healthy battery will typically have no problems for around 15-20 days.

Note:- The battery discharge curve does not include consumption of other equipment / devices

like security systems which are also continuously powered by the battery.

Typical self-discharge rate of 4% per week is considered.

Do's & Dont's To Ensure Maximum Effect & Efficacy With CARCAT-RED – 4th Gen

Clearance From Front Grill For Maximum Effect

Ensure minimum clearance of 20 cm (~8 inches) between front grill of CARCAT and any other engine part.

In case Of Foam Underneath The Bonnet

Do not mount unit facing the bonnet, if it is covered with insulating foam.

CARCAT-RED Should Be Affixed Properly

Never keep CARCAT dangling loose or suspended by its cable.

Do Not Affix Using Double Sided Tape

Never affix CARCAT using a double sided tape. Direct contact with metallic / plastic surface enhances repelling effect.
